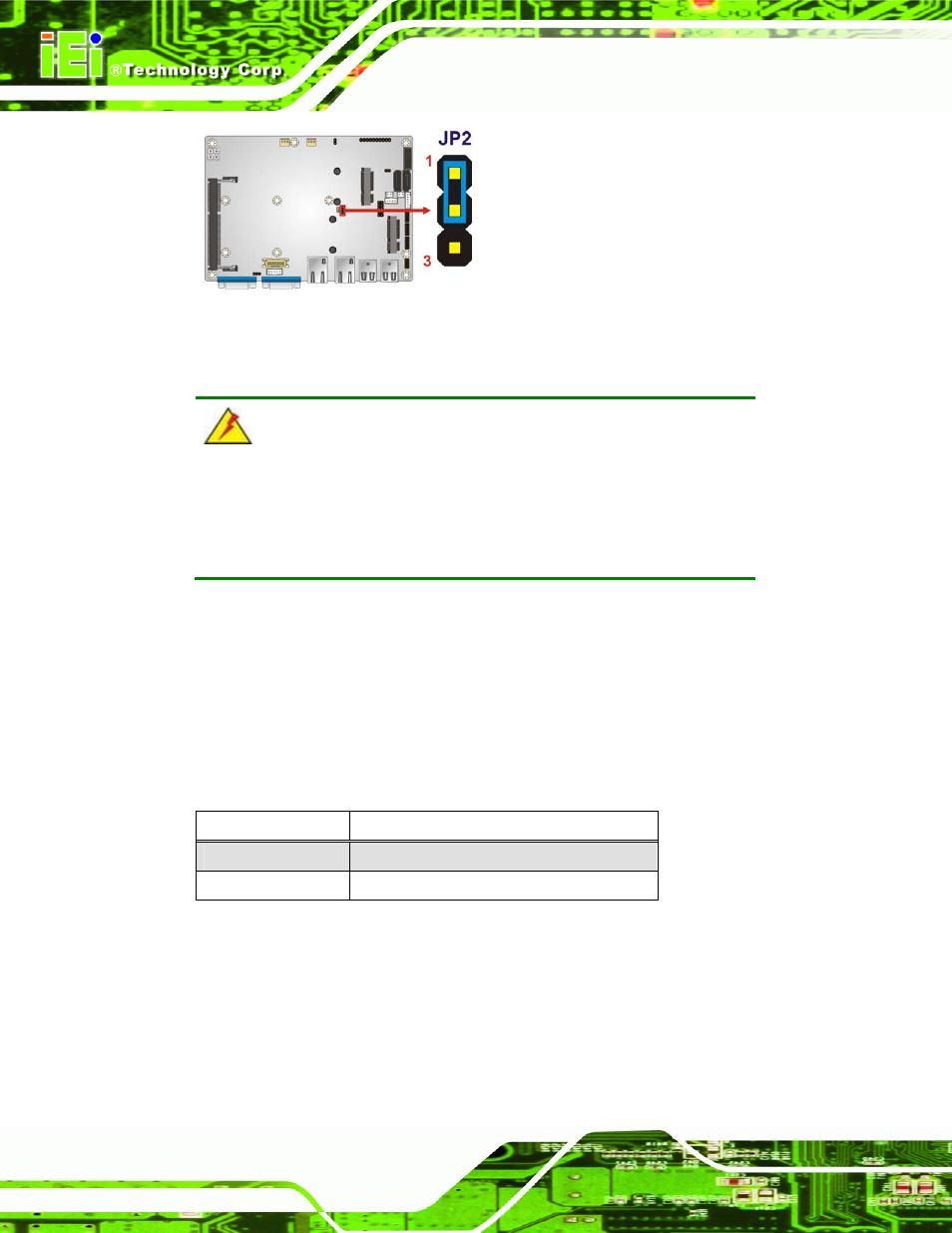

Figure 4-3: Clear CMOS Jumper Location
4.4.3 LVDS1 Voltage Selection
WARNING:
Permanent damage to the screen and NANO-CV-D25502/N26002 may
occur if the wrong voltage is selected with this jumper. Please refer to
the user guide that came with the monitor to select the correct voltage.
Jumper Label: JP3
Jumper Type: 3-pin header
Jumper Settings: See Table 4-4
Jumper Location: See Figure 4-4
Sets the voltage provided to the monitor by LVDS1.
Setting Description
Short 1-2 +3.3V LVDS (Default)
Short 2-3 +5V LVDS
Table 4-4: LVDS1 Voltage Selection Jumper Settings
