NANO-CV-D25502/N26002 EPIC SBC

Page 19

Pin

Description

Pin

Description

1

GND

2

VCC

3

Output 3

4

Output 2

5

Output 1

6

Output 0

7

Input 3

8

Input 2

9

Input 1

10

Input 0

Table 3-7: Digital I/O Connector Pinouts

3.2.6 Fan Connectors

CN Label:

CPU_FAN1, SYS_FAN1

CN Type:

3-pin wafer

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-8

The fan connectors attach to the CPU/system cooling fans.

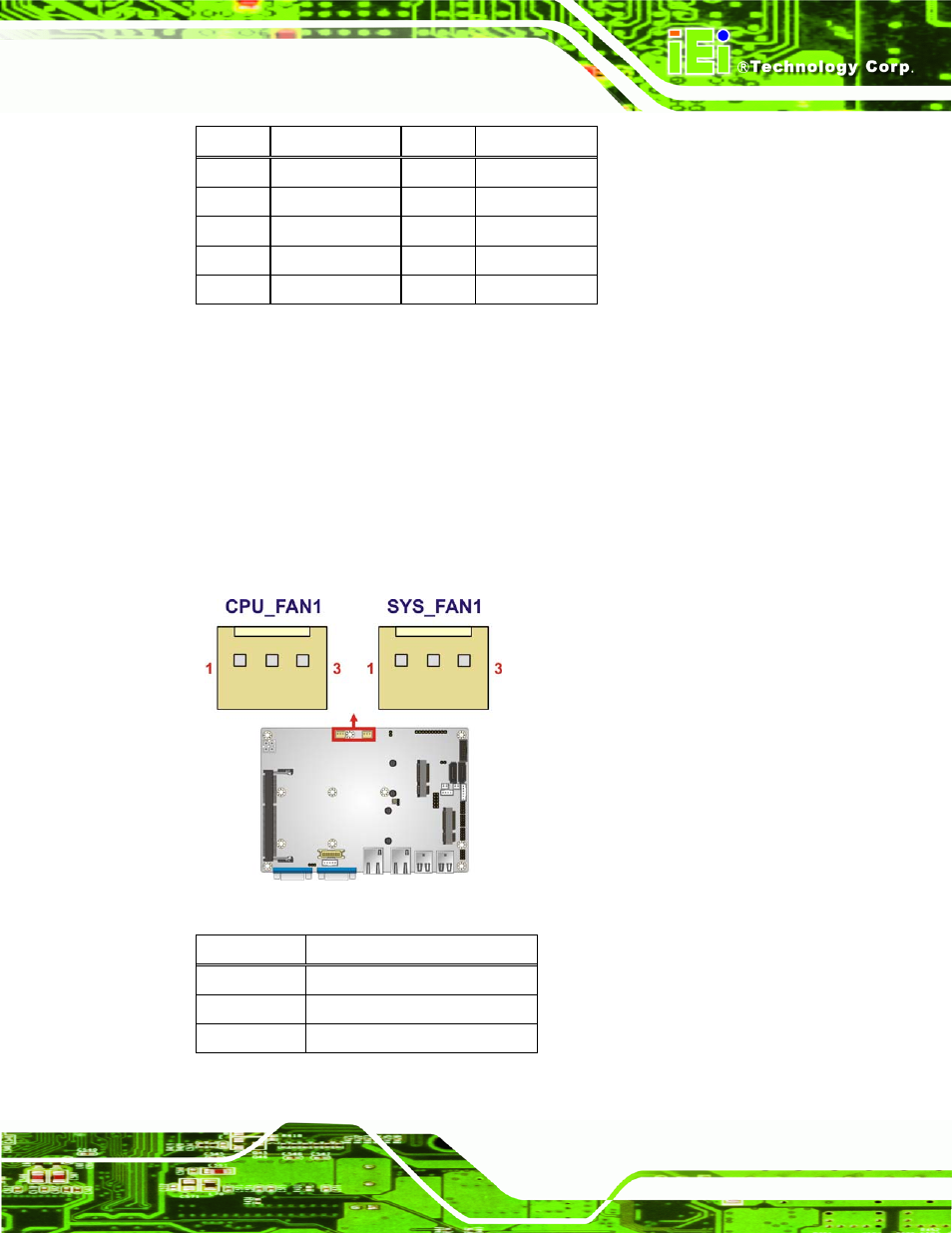

Figure 3-7: Fan Connector Locations

PIN NO.

DESCRIPTION

1

FANIO

2

+12V (PWM)

3

Ground

Table 3-8: Fan Connector Pinouts
