NANO-CV-D25502/N26002 EPIC SBC
Page 42
Step 3: Connect Power Cable to Power Supply. Connect one of the 4-pin (1x4) Molex
type power cable connectors to an AT/ATX power supply. See Figure 4-7.

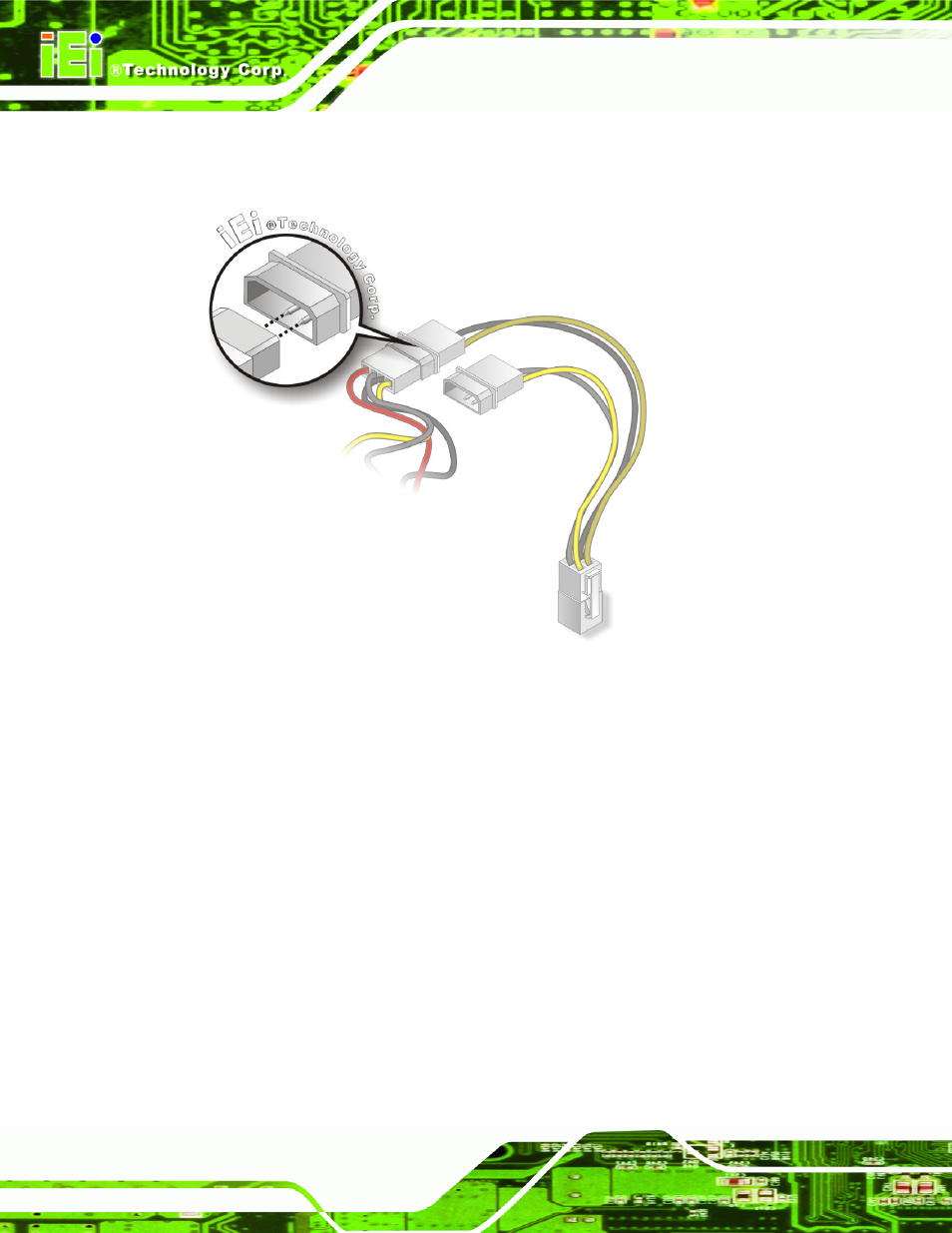

Figure 4-7: Connect Power Cable to Power Supply
4.6.2 Audio Kit Installation
The Audio Kit that came with the NANO-CV-D25502/N26002 connects to the 10-pin audio
connector on the NANO-CV-D25502/N26002. The audio kit consists of three audio jacks.
One audio jack, Mic In, connects to a microphone. The remaining two audio jacks, Line-In
and Line-Out, connect to two speakers. To install the audio kit, please refer to the steps
below:
Step 1: Locate the audio connector. The location of the 10-pin audio connector is
shown in Chapter 3.
Step 2: Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit
connector. Pin 1 on the audio kit connector is indicated with a white dot. See
Figure 4-8.
