NANO-CV-D25502/N26002 EPIC SBC
Page 3
Supports dual VGA and 18/24-bit LVDS interface for dual display
1066/800 MHz DDR3 SO-DIMM supports up to 4 GB
Easy-assembly thermal design by heat sink enclosure
Wide range power input (9V~28V)
Full-size PCIe Mini card slot with mSATA support
Dual GbE
RoHS compliant
1.4 Connectors
The connectors on the NANO-CV-D25502/N26002 are shown in the figure below.

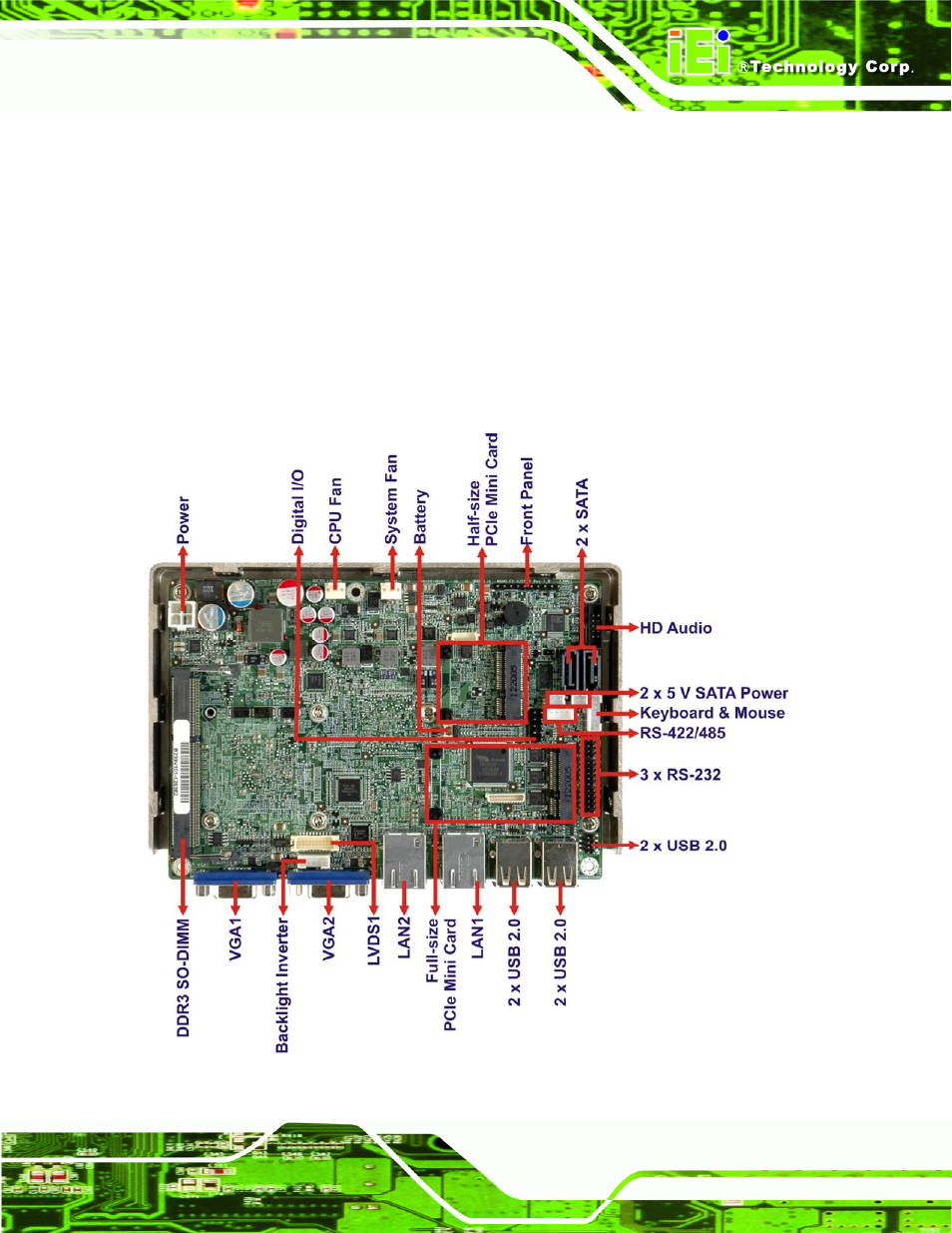

Figure 1-2: Connectors
