NANO-CV-D25502/N26002 EPIC SBC

Page 49

4.7 External Peripheral Interface Connection

This section describes connecting devices to the external connectors on the

NANO-CV-D25502/N26002.

4.7.1 LAN Connection

The RJ-45 connector enables connection to an external network. To connect a LAN cable

with an RJ-45 connector, please follow the instructions below.

Step 1:

Locate the RJ-45 connector. The locations of the RJ-45 connectors are shown

in Chapter 3.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with the

RJ-45 connector on the NANO-CV-D25502/N26002. See Figure 4-14.

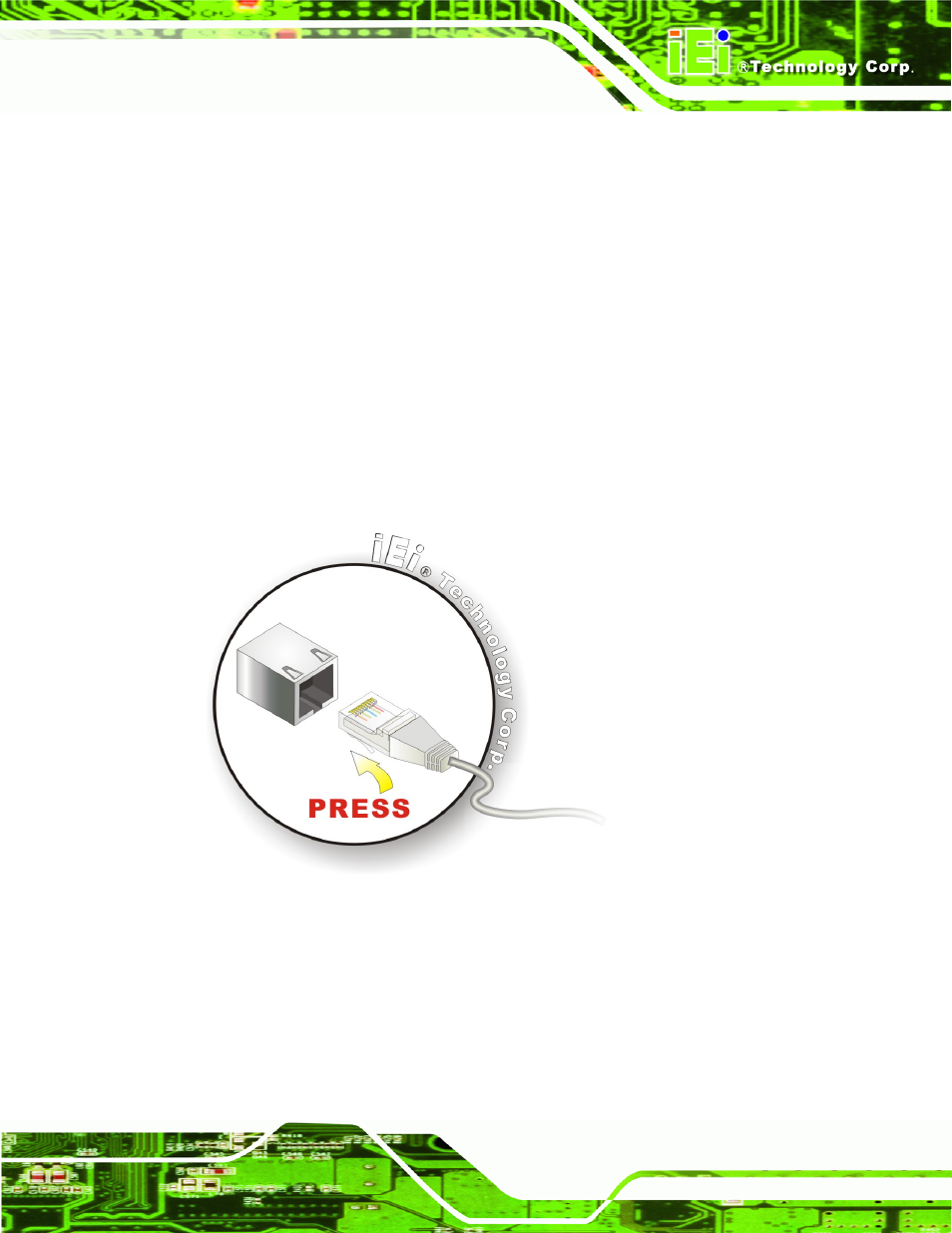

Figure 4-14: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.
