NANO-CV-D25502/N26002 EPIC SBC

Page 4

1.5 Dimensions

The main dimensions of the NANO-CV-D25502/N26002 are shown in the diagram below.

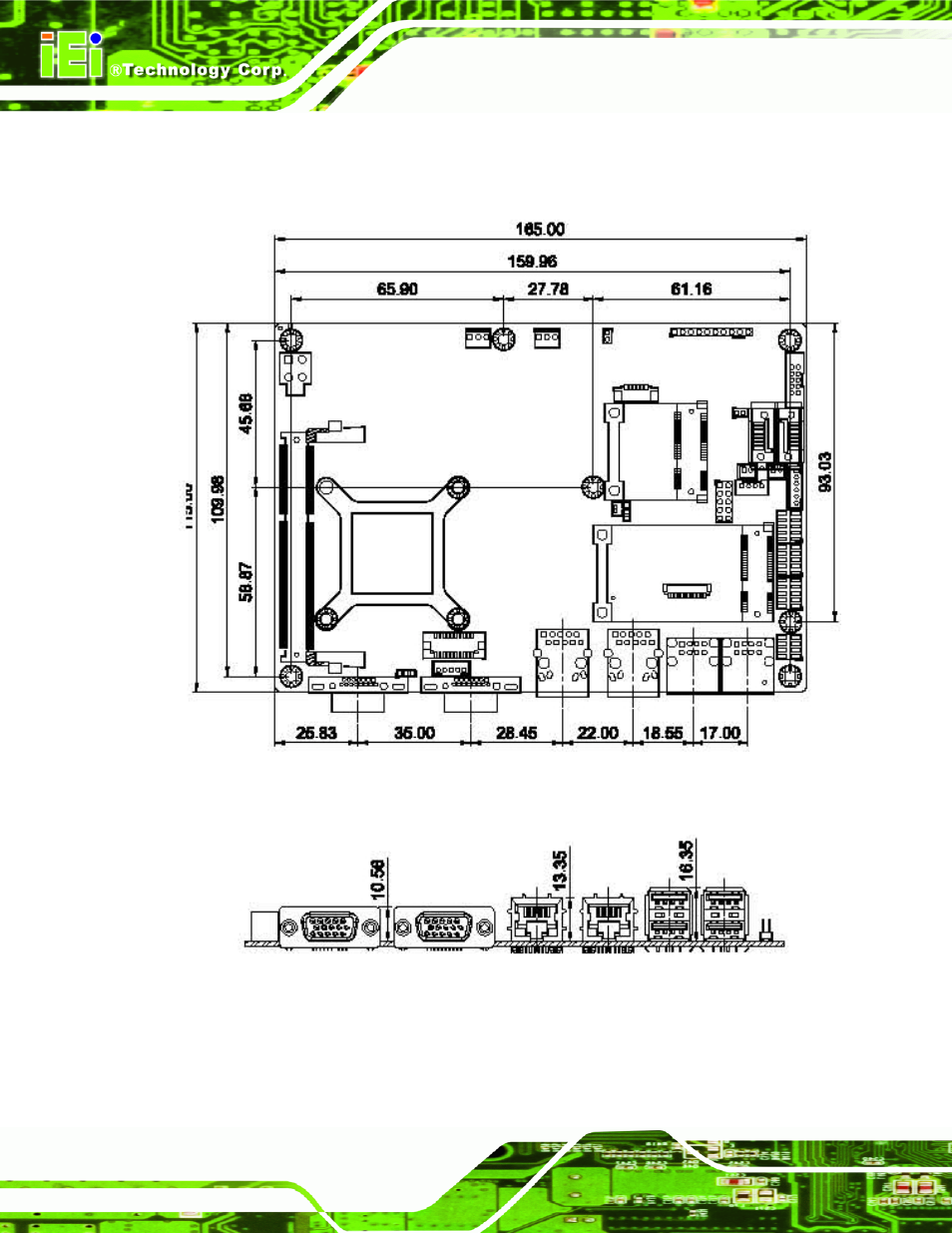

Figure 1-3: NANO-CV-D25502/N26002 Dimensions (mm)

.

Figure 1-4: External Interface Panel Dimensions (mm)
