NANO-CV-D25502/N26002 EPIC SBC

Page 17

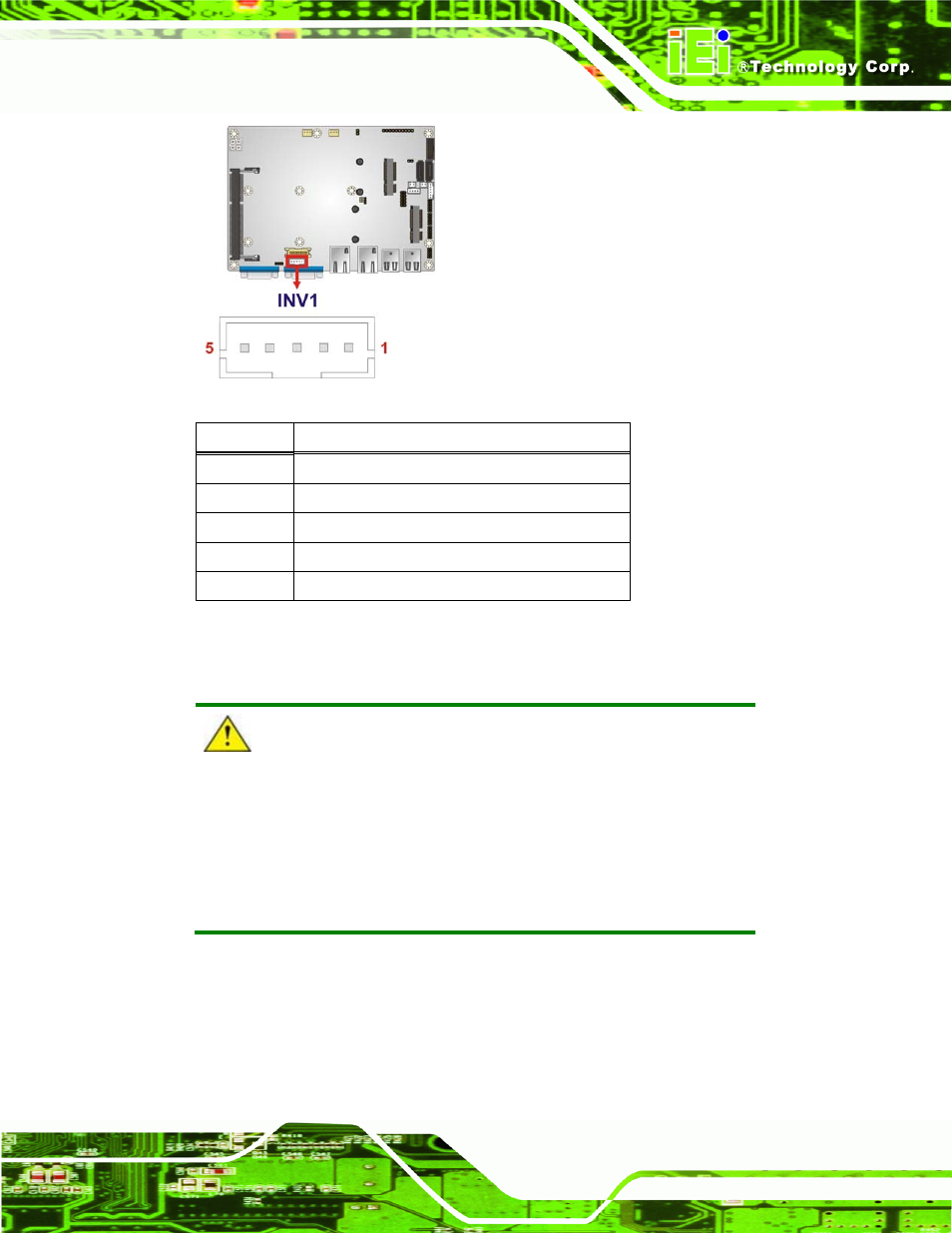

Figure 3-4: Backlight Inverter Connector Location

Pin Description

1

LCD_BKLTCTL

2

GROUND

3

+12V

4

GROUND

5

BACKLIGHT ENABLE

Table 3-5: Backlight Inverter Connector Pinouts

3.2.4 Battery Connector

CAUTION:

Risk of explosion if battery is replaced by an incorrect type. Only

certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local

regulations.

CN Label:

CN1

CN Type:

2-pin wafer

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6
