NANO-CV-D25502/N26002 EPIC SBC

Page 23

NOTE:

The M_PCIE1 slot supports mSATA devices. However, the SATA1

connector will be disabled when an mSATA device is installed to the

M_PCIE1 slot.

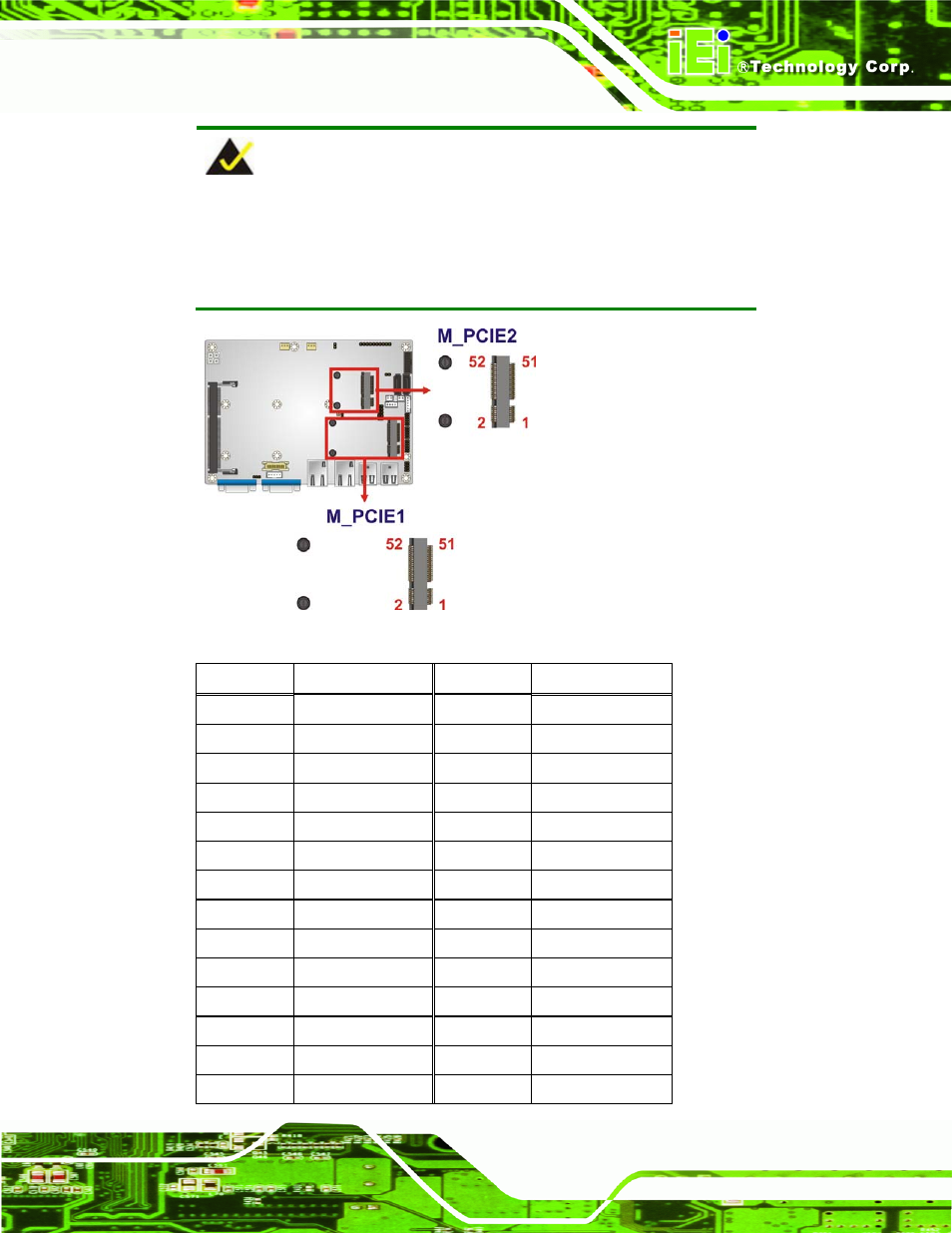

Figure 3-11: PCIe Mini Card Slot Locations

Pin Description

1 PCIE_WAKE#

2 VCC3

3 N/C

4 GND

5 N/C

6 1.5V

7 N/C

8 N/C

9 GND

N/C

11 PCIE_CLK#

12 N/C

13 PCIE_CLK 14 N/C

15 GND

16 N/C

17 N/C

18 GND

19 N/C

20 N/C

21 GND

22 PCIRST#

23 PCIE_RXN 24 VCC3

25 PCIE_RXP 26 GND

27 GND

28 1.5V
