NANO-CV-D25502/N26002 EPIC SBC

Page 18

This is connected to the system battery. The battery provides power to the system clock to

retain the time when power is turned off.

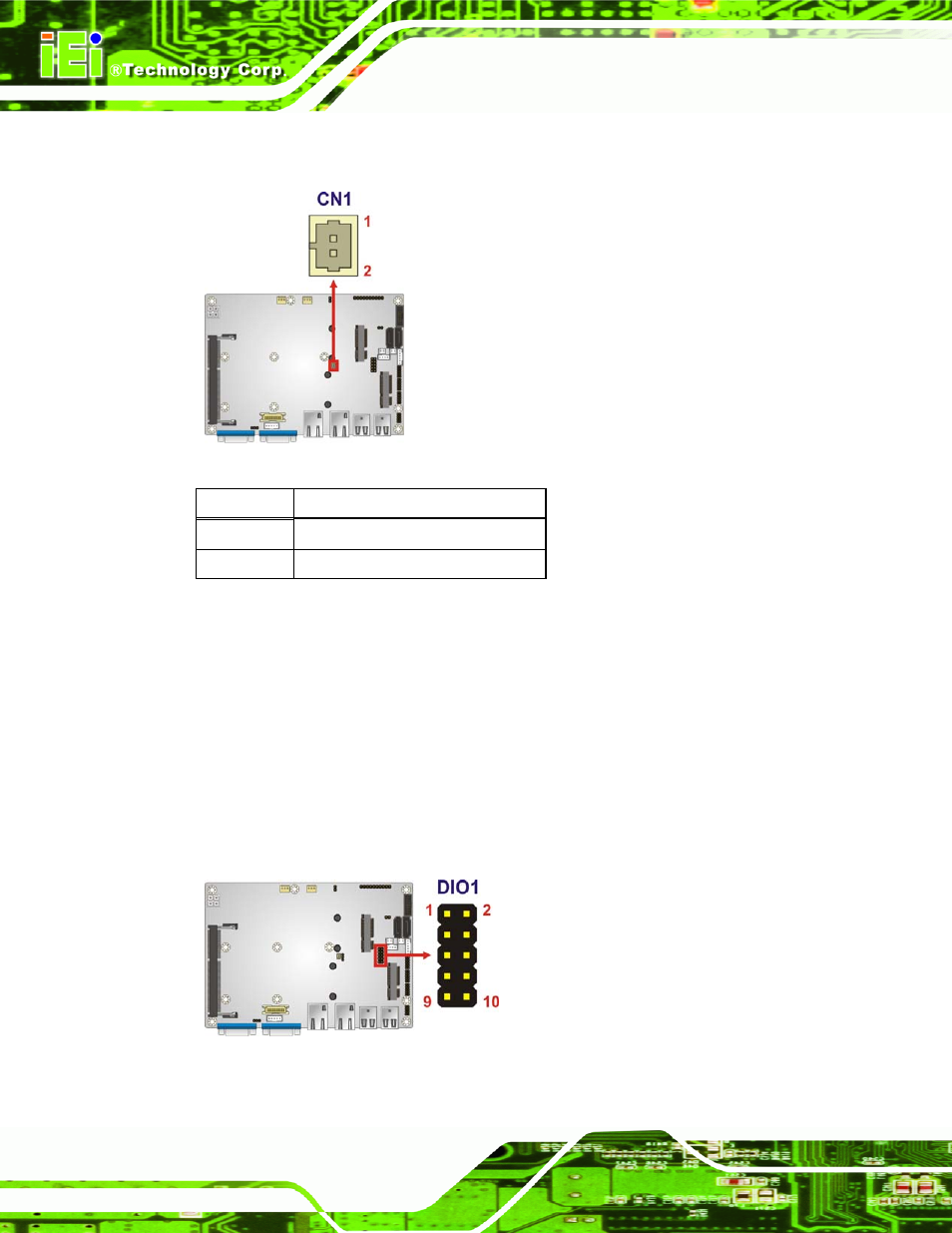

Figure 3-5: Battery Connector Location

Pin Description

1 Battery+

2 GND

Table 3-6: Battery Connector Pinouts

3.2.5 Digital Input/Output (DIO) Connector

CN Label:

DIO1

CN Type:

10-pin header

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.

Figure 3-6: Digital I/O Connector Location
