NANO-CV-D25502/N26002 EPIC SBC
Page 36
Step 5: Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into
place and secure the SO-DIMM in the socket. Step 0:
4.4 Jumper Settings

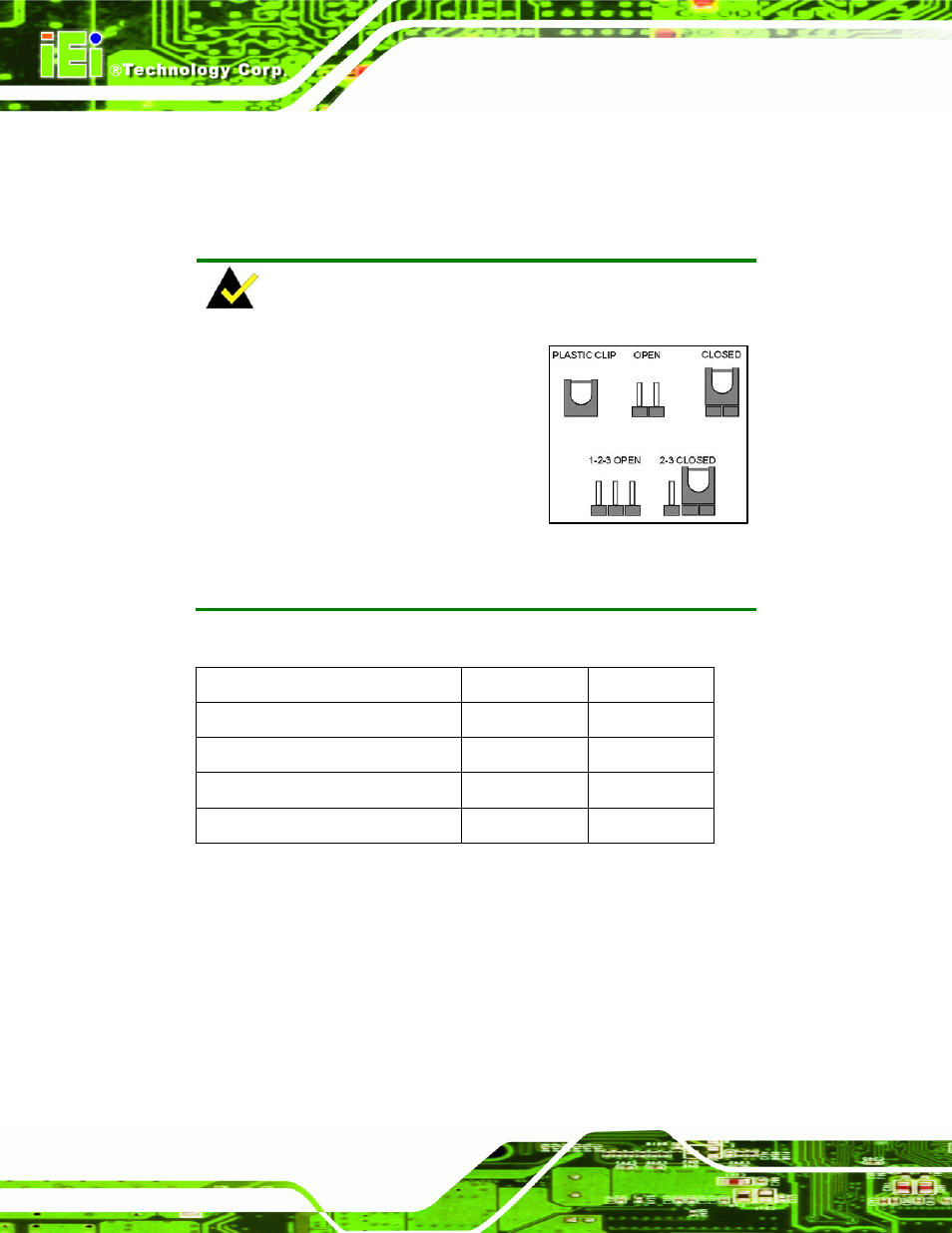

NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
AT/ATX power selection JP1 2-pin header
Clear CMOS JP2 3-pin header
LVDS1 voltage selection JP3 3-pin header
mSATA/PCIe Mini selection MSATA_SW1 2-pin header
Table 4-1: Jumpers
4.4.1 AT/ATX Power Selection Jumper
Jumper Label: JP1
Jumper Type: 2-pin header
Jumper Settings: See Table 4-2
Jumper Location: See Figure 4-2
The AT/ATX power selection jumper specifies the system power mode as AT or ATX.
