NANO-CV-D25502/N26002 EPIC SBC
Page 31
3.3.3 VGA Connectors
CN Label: VGA1, VGA2
CN Type: 15-pin Female
CN Location: See Figure 3-18
CN Pinouts: See Figure 3-20 and Table 3-21
Each VGA connector connects to a monitor that accepts a standard VGA input.
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-21: VGA Connector Pinouts

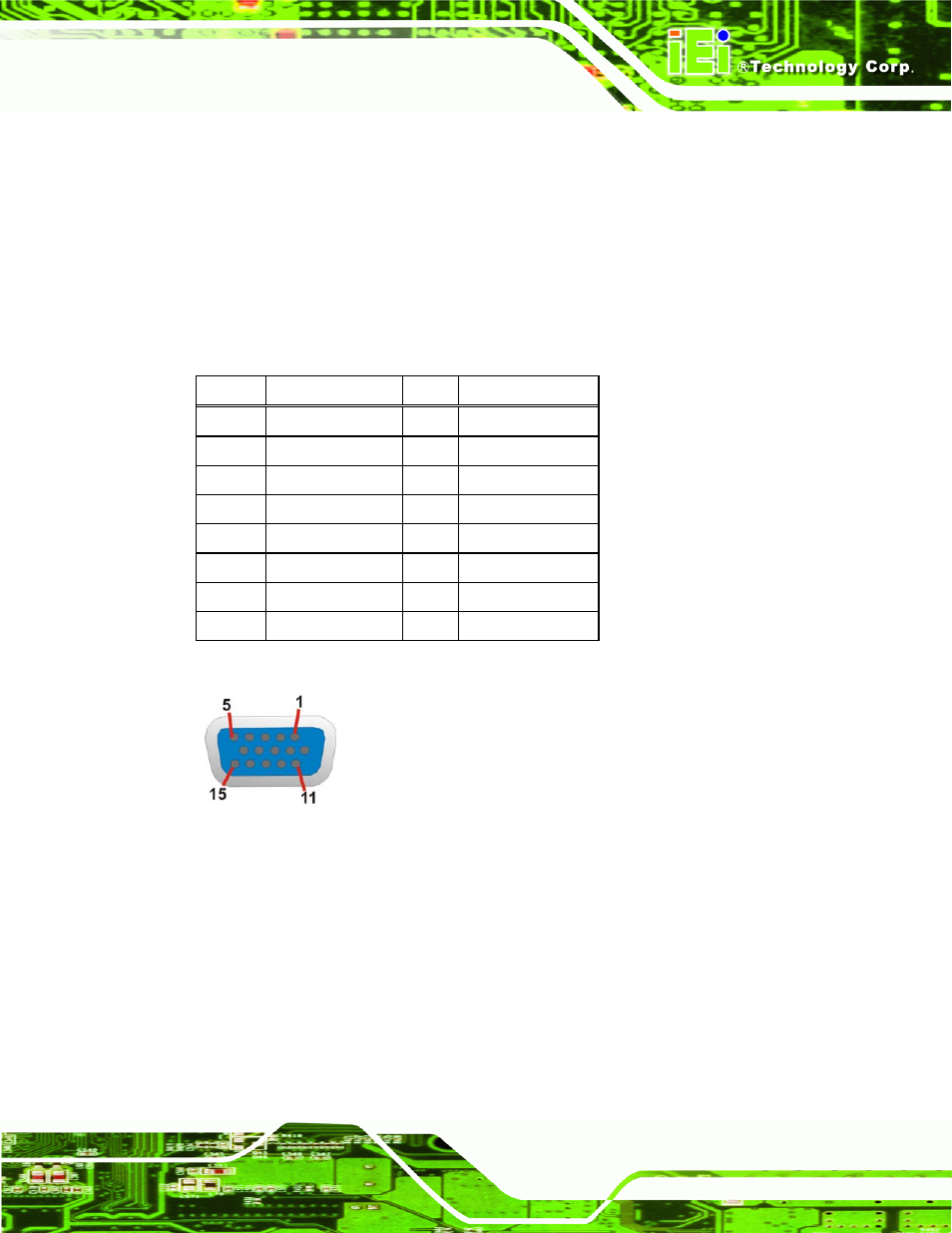

Figure 3-20: VGA Connector
