NANO-CV-D25502/N26002 EPIC SBC
Page 29
Pin Description Pin Description
1 USB_VCC 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA-
7 GND 8 USB_VCC
Table 3-17: USB Connector Pinouts
3.3 External Peripheral Interface Connector Panel
The figure below shows the external periphe4ral interface connector (EPIC) panel. The
EPIC panel consists of the following:

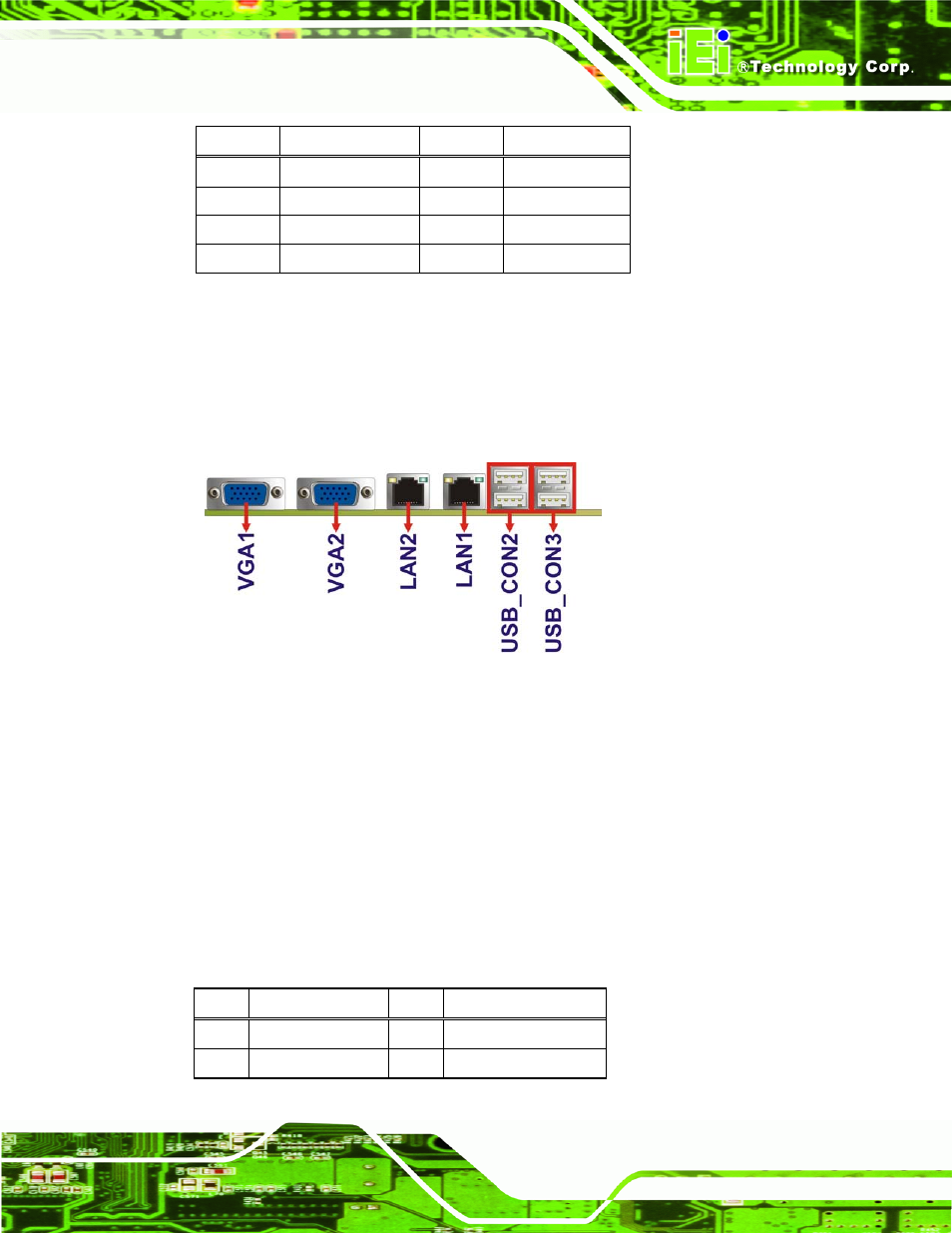

Figure 3-18: External Peripheral Interface Connector
3.3.1 Ethernet Connectors
CN Label: LAN1, LAN2
CN Type: RJ-45 connector
CN Location: See Figure 3-18
CN Pinouts: See Table 3-18
The NANO-CV-D25502/N26002 is equipped with two built-in RJ-45 Ethernet controllers.
Each controller can connect to the LAN through one RJ-45 LAN connector.
Pin Description Pin Description
1 MDI0+ 5 MDI2+
2 MDI0- 6 MDI2-
