NANO-CV-D25502/N26002 EPIC SBC

Page 25

Pin Description Pin Description

1 GND

2 GND

3 PWR

4 PWR

Table 3-13: Power Connector Pinouts

3.2.12 RS-232 Serial Port Connectors

CN Label:

COM1, COM2, COM3

CN Type:

10-pin header

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-14

Each of these connectors provides RS-232 connections.

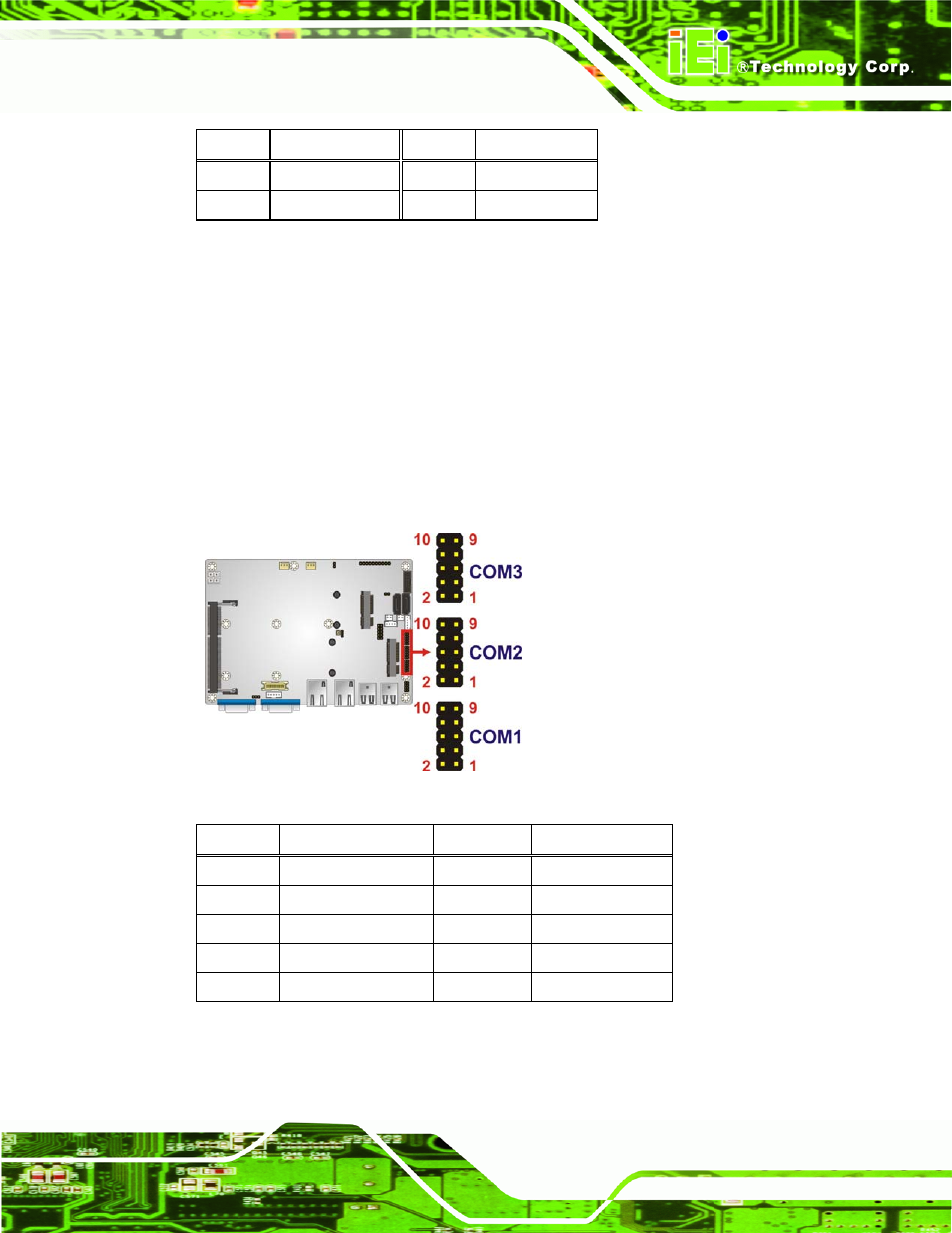

Figure 3-13: RS-232 Serial Port Connector Locations

Pin

Description

Pin

Description

1

DCD

2

DSR

3

RXD

4

RTS

5

TXD

6

CTS

7

DTR

8

RI

9

GND

10

GND

Table 3-14: RS-232 Serial Port Connector Pinouts
