NANO-CV-D25502/N26002 EPIC SBC

Page 47

4.6.5 SATA Drive Connection

The NANO-CV-D25502/N26002 is shipped with a SATA drive cable. To connect the SATA

drive to the connector, please follow the steps below.

Step 1:

Locate the SATA connector and the SATA power connector. The locations of

the connectors are shown in Chapter 3.

Step 2:

Insert the cable connector. Insert the cable connector into the on-board SATA

drive connector and the SATA power connector. See Figure 4-12.

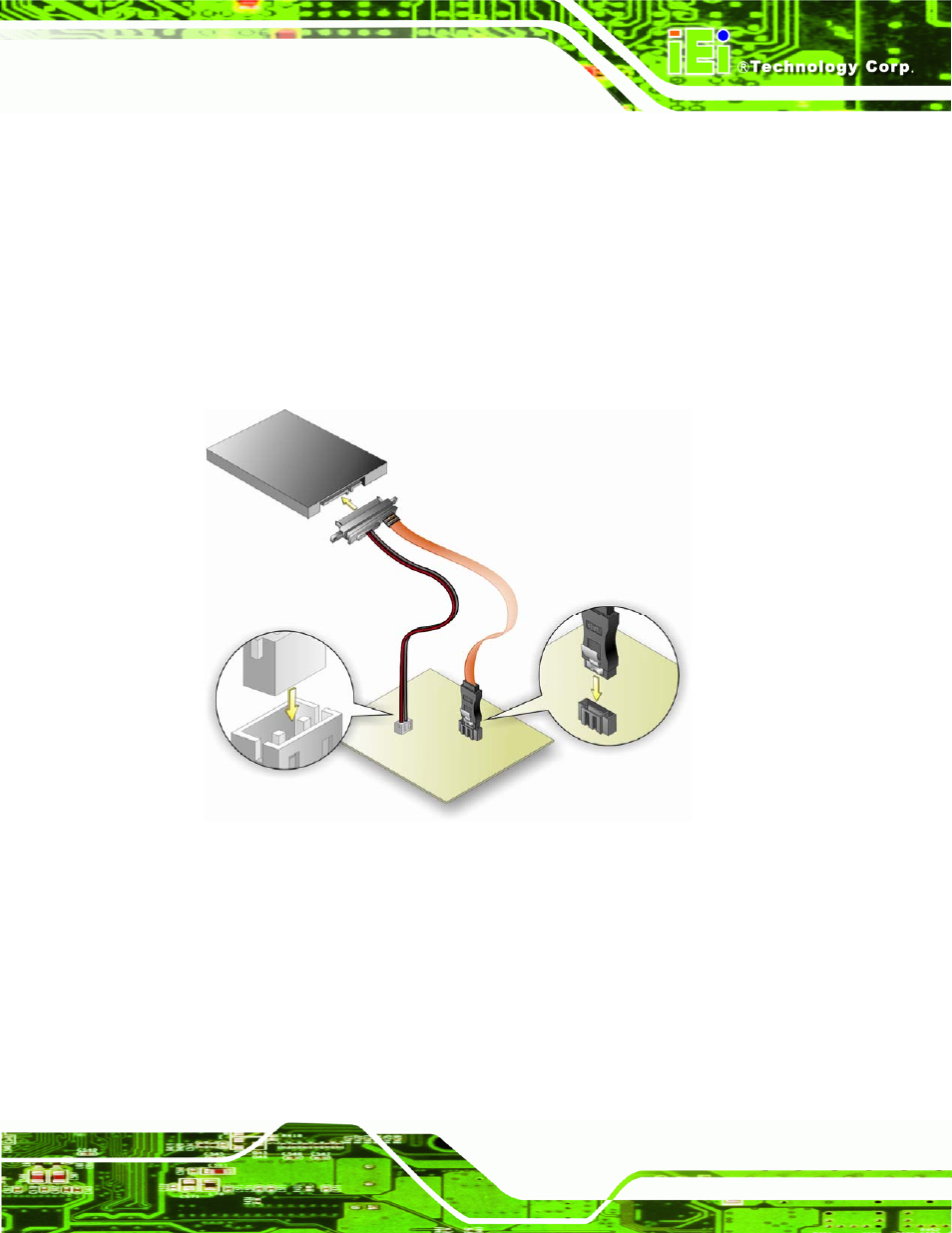

Figure 4-12: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 4-12.

Step 4:

To remove the SATA cable from the SATA connector, press the clip on the

connector at the end of the cable.
