NANO-CV-D25502/N26002 EPIC SBC
Page 46
4.6.4 PCIe Mini Card Installation
To install the PCIe Mini card, please refer to the diagram and instructions below.

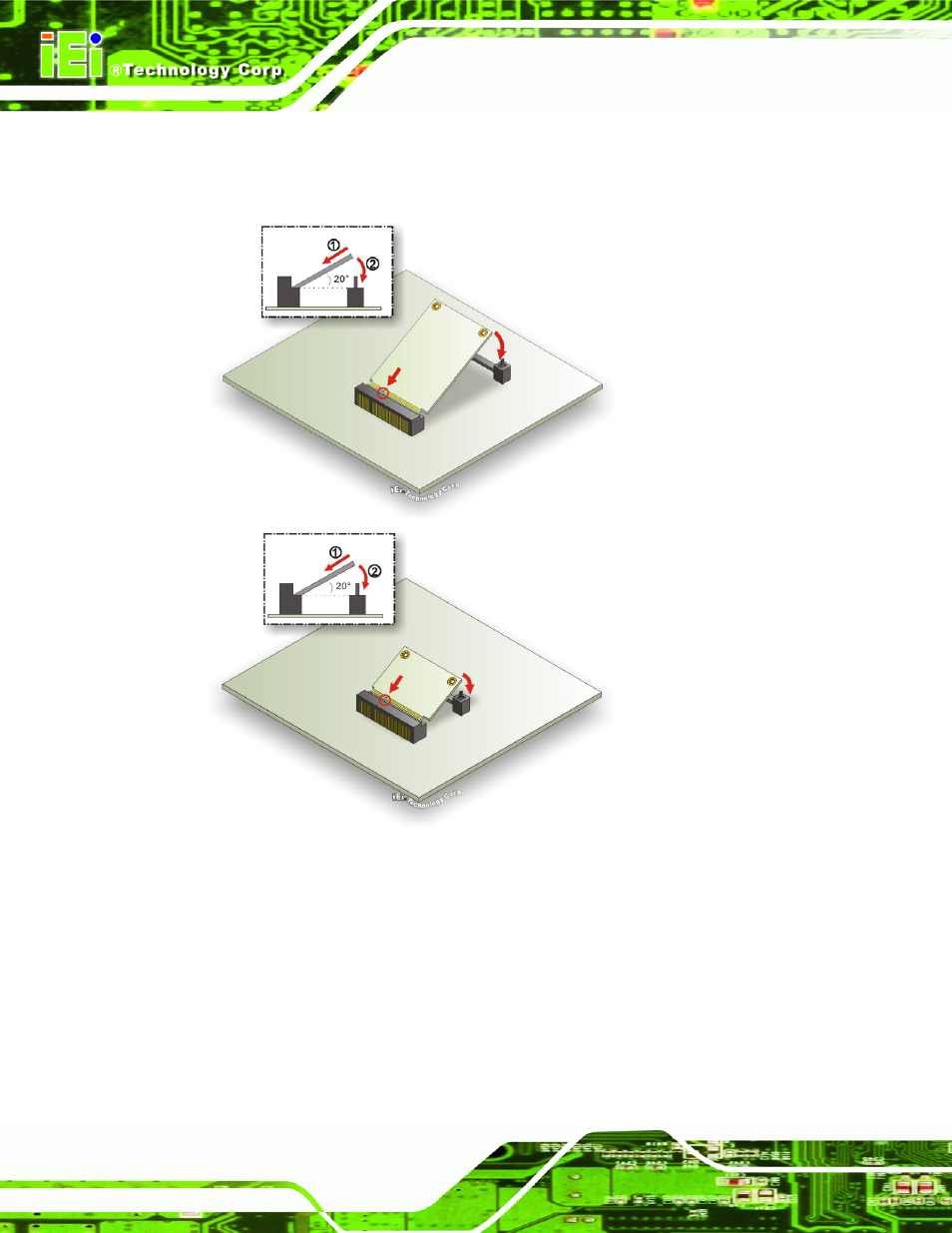

Figure 4-11: PCIe Mini Card Installation
Step 1: Insert into the socket at and angle. Line up the notch on the card with the
notch on the connector. Slide the PCIe Mini card into the socket at an angle of
about 20º.
Step 2: Push down until the card clips into place. Push the other end of the card
down until it clips into place on the plastic connector.
