NANO-CV-D25502/N26002 EPIC SBC

Page 20

3.2.7 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

10-pin header

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-9

The front panel connector connects to the indicator LEDs and buttons on the computer's

front panel.

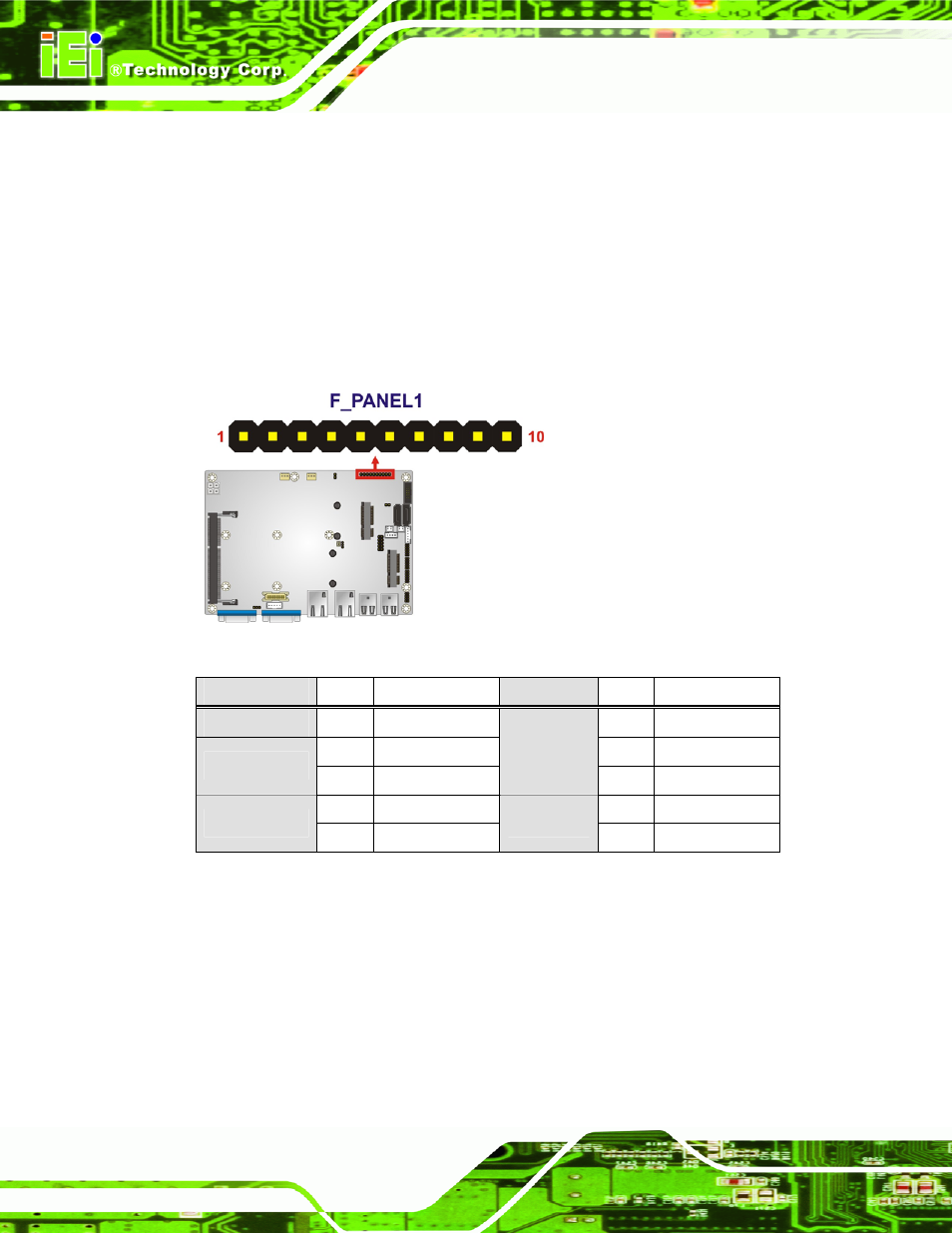

Figure 3-8: Front Panel Connector Location

Function

Pin

Description

Function

Pin

Description

1

NC

6

PWRLED

2

PWRBTSW#

7

PWRLED

Power Button

3

GND

Power LED

8

GND

4

+V5S

9

RESET+

HDD LED

5

HDD_LED-

Reset Button

10

GND

Table 3-9: Front Panel Connector Pinouts

3.2.8 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10
