NANO-CV-D25502/N26002 EPIC SBC
Page 41
4.6.1 AT/ATX Power Connection
Follow the instructions below to connect the NANO-CV-D25502/N26002 to an AT or ATX
power supply.
WARNING:
Disconnect the power supply power cord from its AC power source to
prevent a sudden power surge to the NANO-CV-D25502/N26002.
Step 1: Locate the power cable. The power cable is shown in the packing list in
Chapter 2.
Step 2: Connect the Power Cable to the Motherboard. Connect the 4-pin (2x2) Molex
type power cable connector to the power connector on the motherboard. See
Figure 4-6.

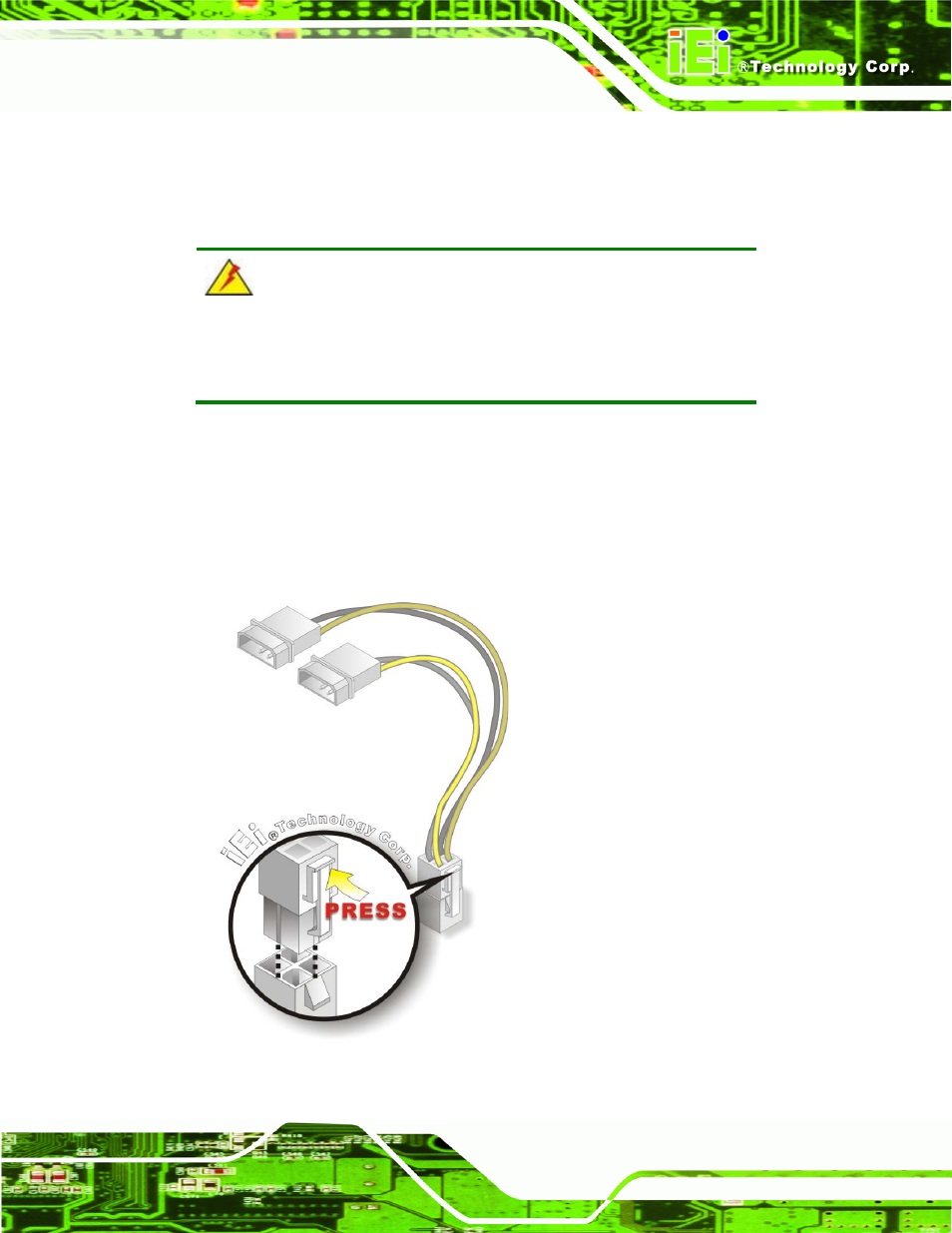

Figure 4-6: Power Cable to Motherboard Connection
