NANO-HM650 EP IC S BC

P a g e 62

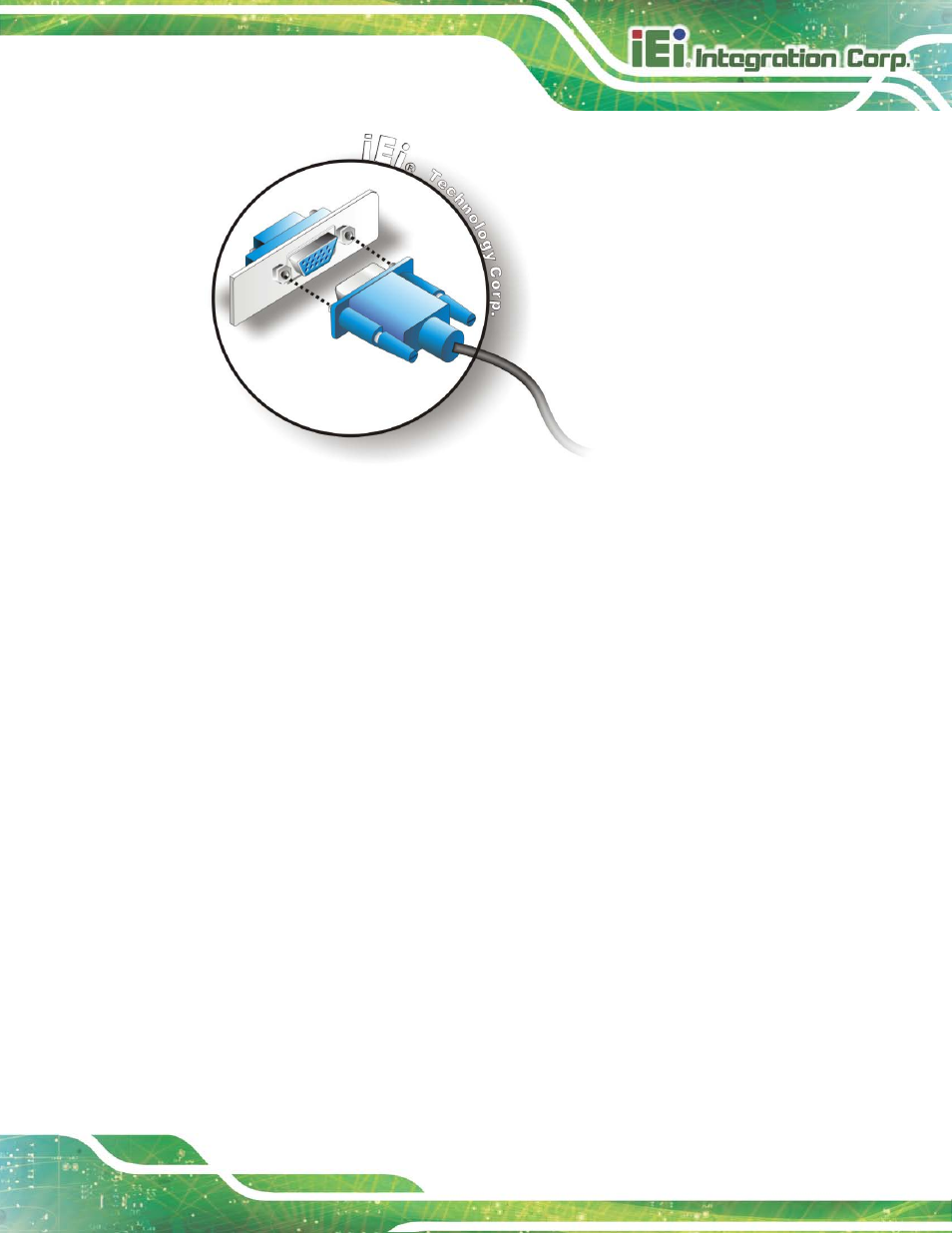

Figure 4-20: VGA Connector

S te p 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.

S te p 0:
