NANO-HM650 EP IC S BC
P a g e 37
3.3.3 US B Co n n e c to rs
CN Label: USB0_1, USB2_3
CN Type: USB port
CN Location: See Figure 3-24
CN Pinouts: See Table 3-24
The NANO-HM650 has four external USB 2.0 connectors. The USB connector can be
connected to a USB device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +5V 5 USB_PN0/2
2 USB_PP0/2 6 GND
3 +5V 7 USB_PN1/3
4 USB_PP1/3 8 GND
Table 3-24: USB Port Connector Pinouts
3.3.4 VGA Co n n e c to r
CN La b e l: VGA1
CN Typ e : 15-pin Female
CN Lo c a tio n : See Figure 3-24
CN P in o u ts : See Figure 3-26 and Table 3-25
The VGA connector connects to a monitor that accepts a standard VGA input.

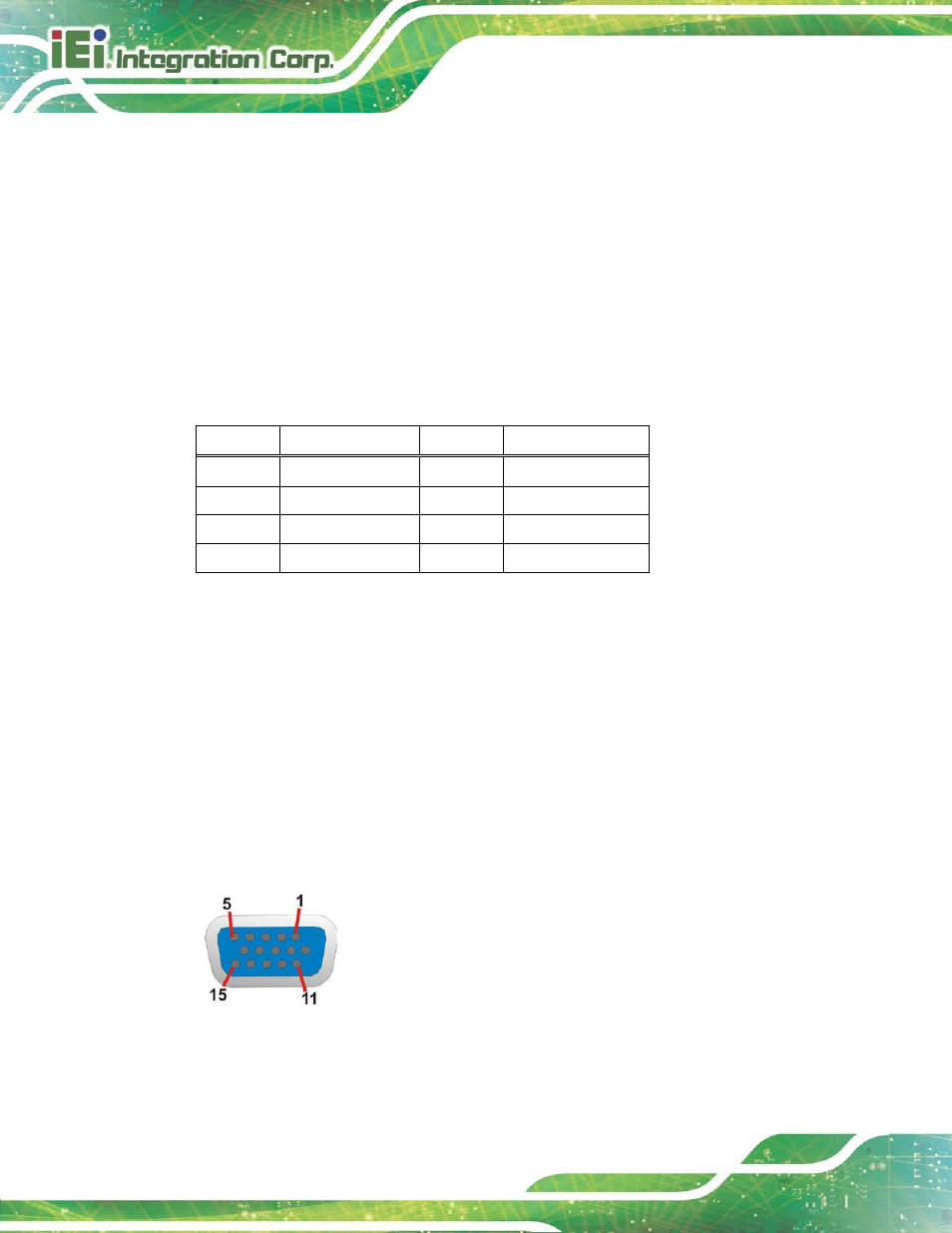

Figure 3-26: VGA Connector
