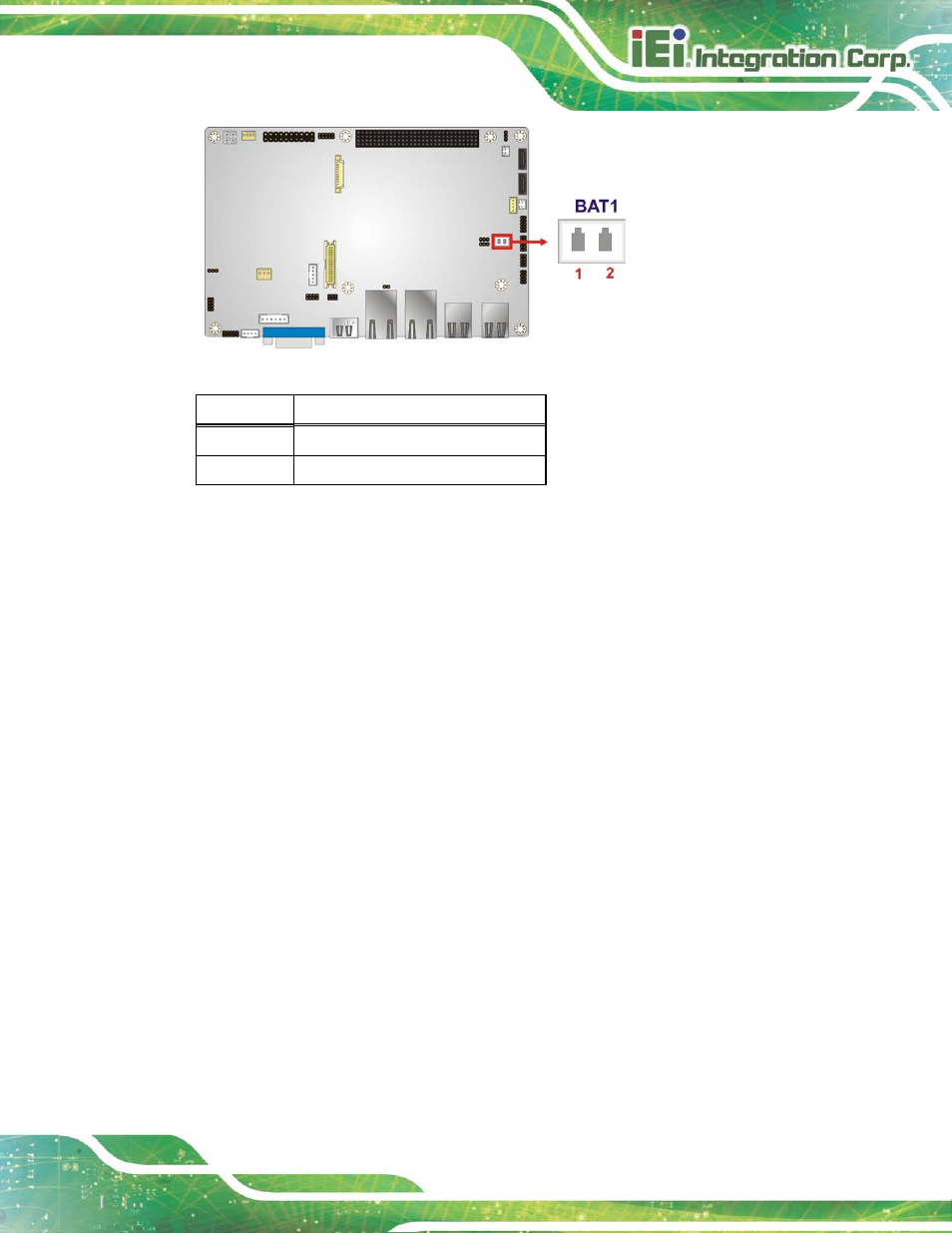

Figure 3-4: Battery Connector Location
Pin Description
1 Battery+
2 Ground
Table 3-5: Battery Connector Pinouts
3.2.4 BIOS Upd a te Co n n e c to r
CN La b e l: J S P I1
CN Typ e : 6-pin wafer
CN Lo c a tio n : See Figure 3-5
CN P in o u ts : See Table 3-6
The BIOS update connector is for BIOS updating only and is located on the solder side
(back).
