NANO-HM650 EP IC S BC
P a g e 29

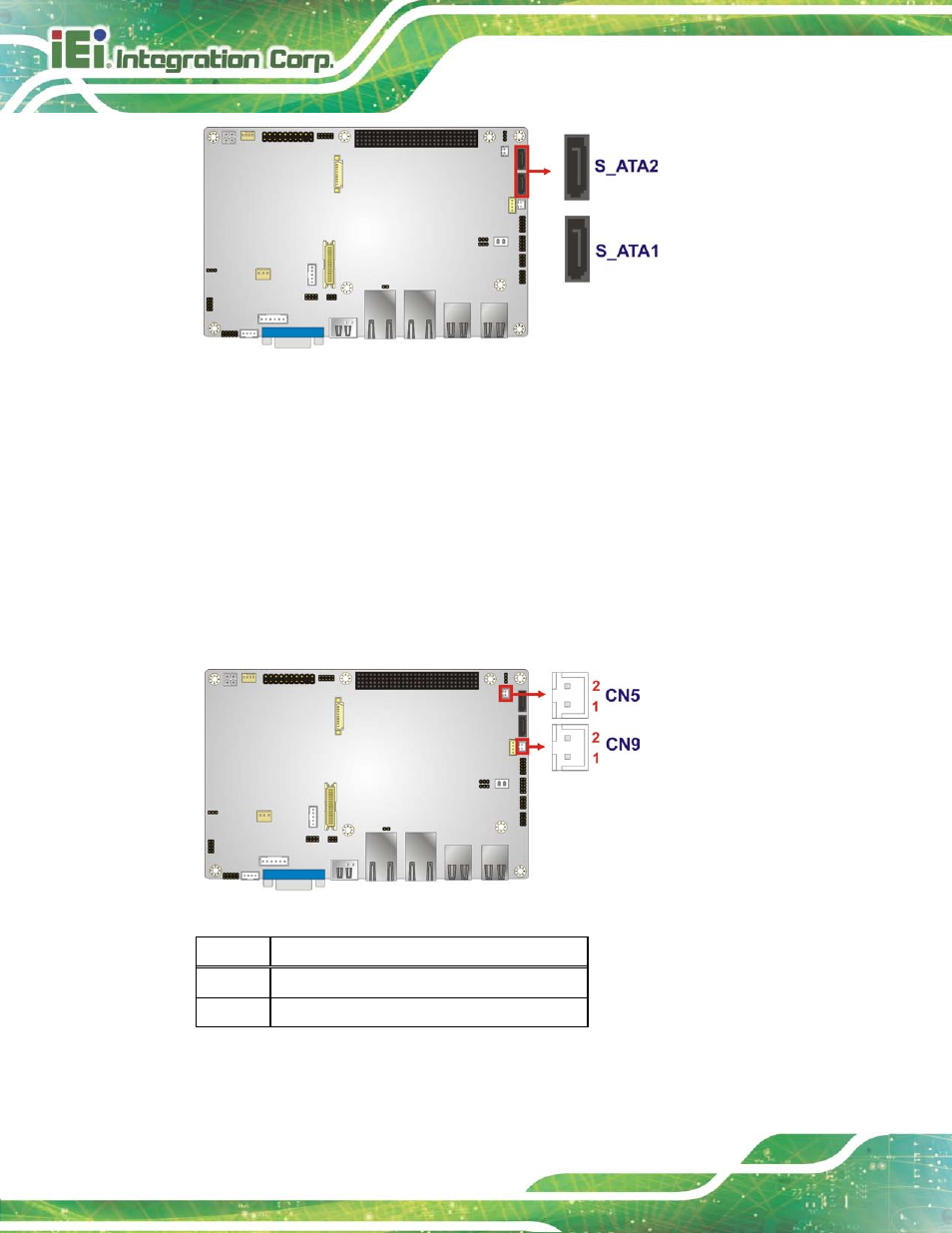

Figure 3-17: SATA Drive Connector Locations
3.2.17 S ATA P o we r Co n n e c to rs
CN La b e l: CN5, CN9
CN Typ e : 2-pin wafer
CN Lo c a tio n : See Figure 3-18
CN P in o u ts : See Table 3-15
The SATA power connectors provide +5V power output to the SATA connectors.
Figure 3-18: SATA Power Connector Locations
PIN NO. DESCRIPTION
1 +5V
2 GND
Table 3-15: SATA Power Connector Pinouts
