NANO-HM650 EP IC S BC

P a g e 25

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.

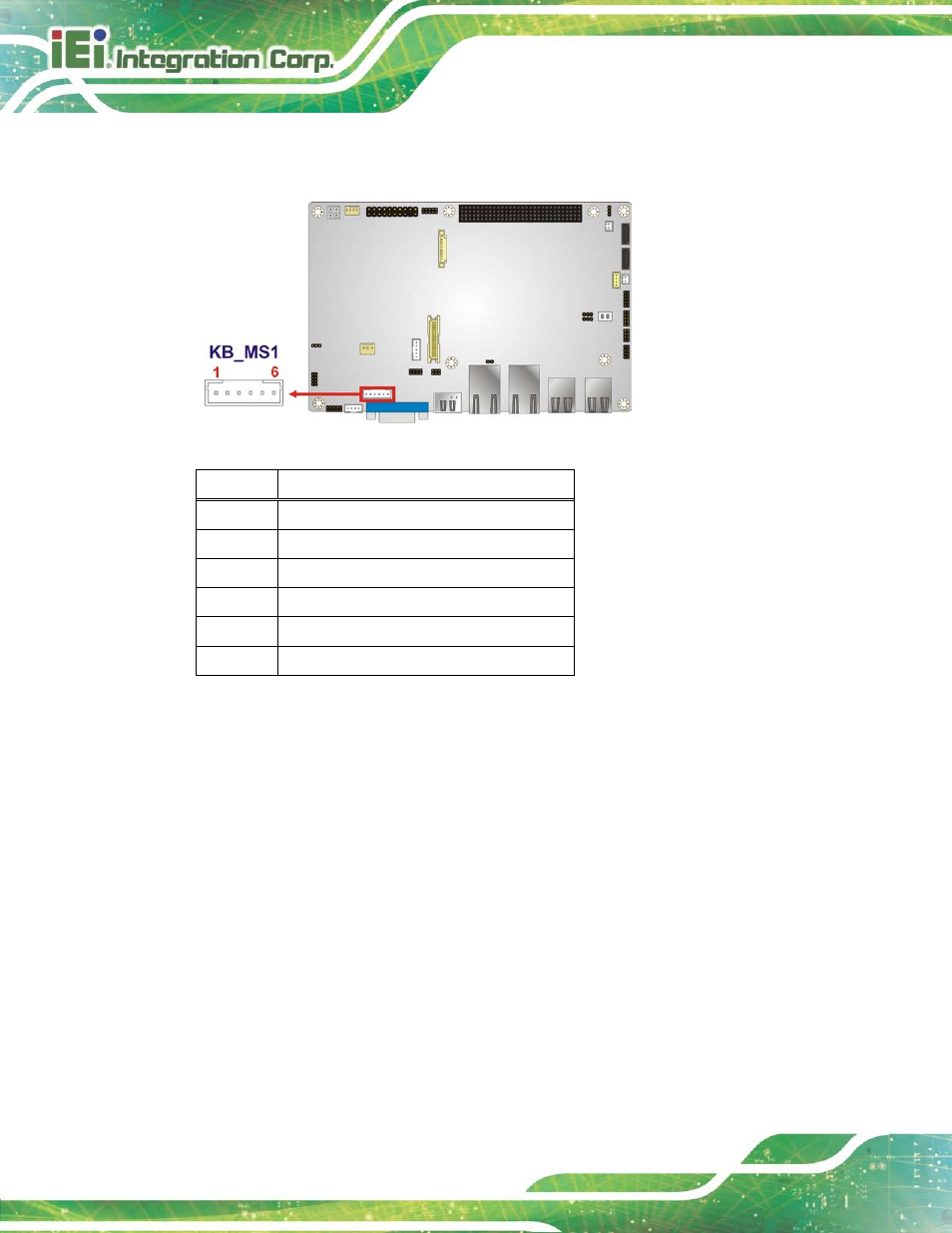

Figure 3-12: Keyboard/Mouse Connector Location

Pin

Description

1

VCC5_KBMS

2

MSDATA

3

MSCLK

4

KBDATA

5

KBCLK

6

GND

Table 3-12: Keyboard/Mouse Connector Pinouts

3.2.12 LVDS LCD Co n n e c to r

CN La b e l:

LVDS 1

CN Typ e :

30-pin crimp

CN Lo c a tio n :

See Figure 3-13

CN P in o u ts :

See Table 3-13

The LVDS connector is for an LCD panel connected to the board.
