Figure 4-13: power cable to motherboard connection – IEI Integration NANO-HM650 User Manual
Page 70
NANO-HM650 EP IC S BC
P a g e 55

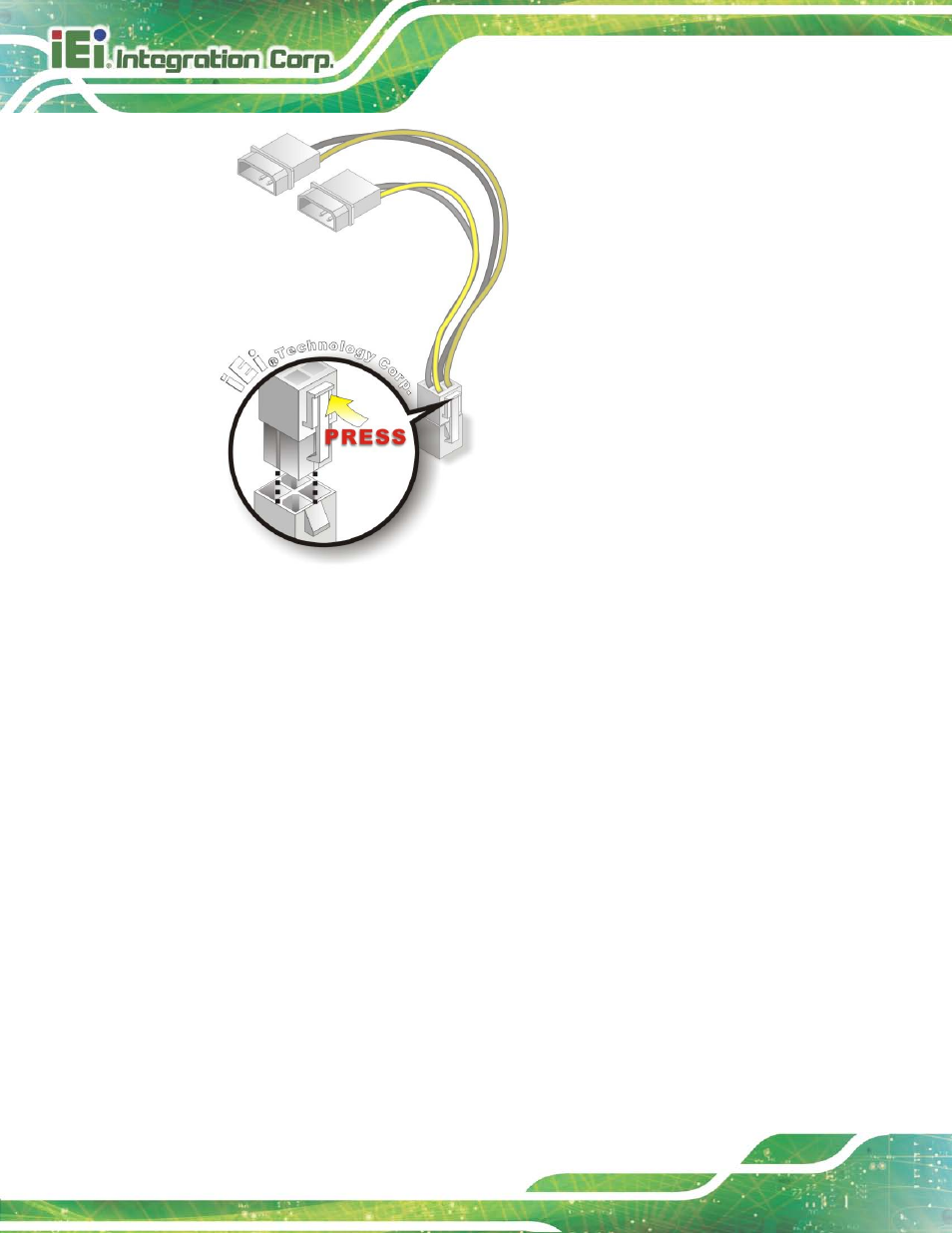

Figure 4-14: Power Cable to Motherboard Connection
S te p 3:
Connect Power Cable to Power Supply. Connect one of the 4-pin (1x4) Molex
type power cable connectors to an AT/ATX power supply. See Figure 4-14.
S te p 0:
