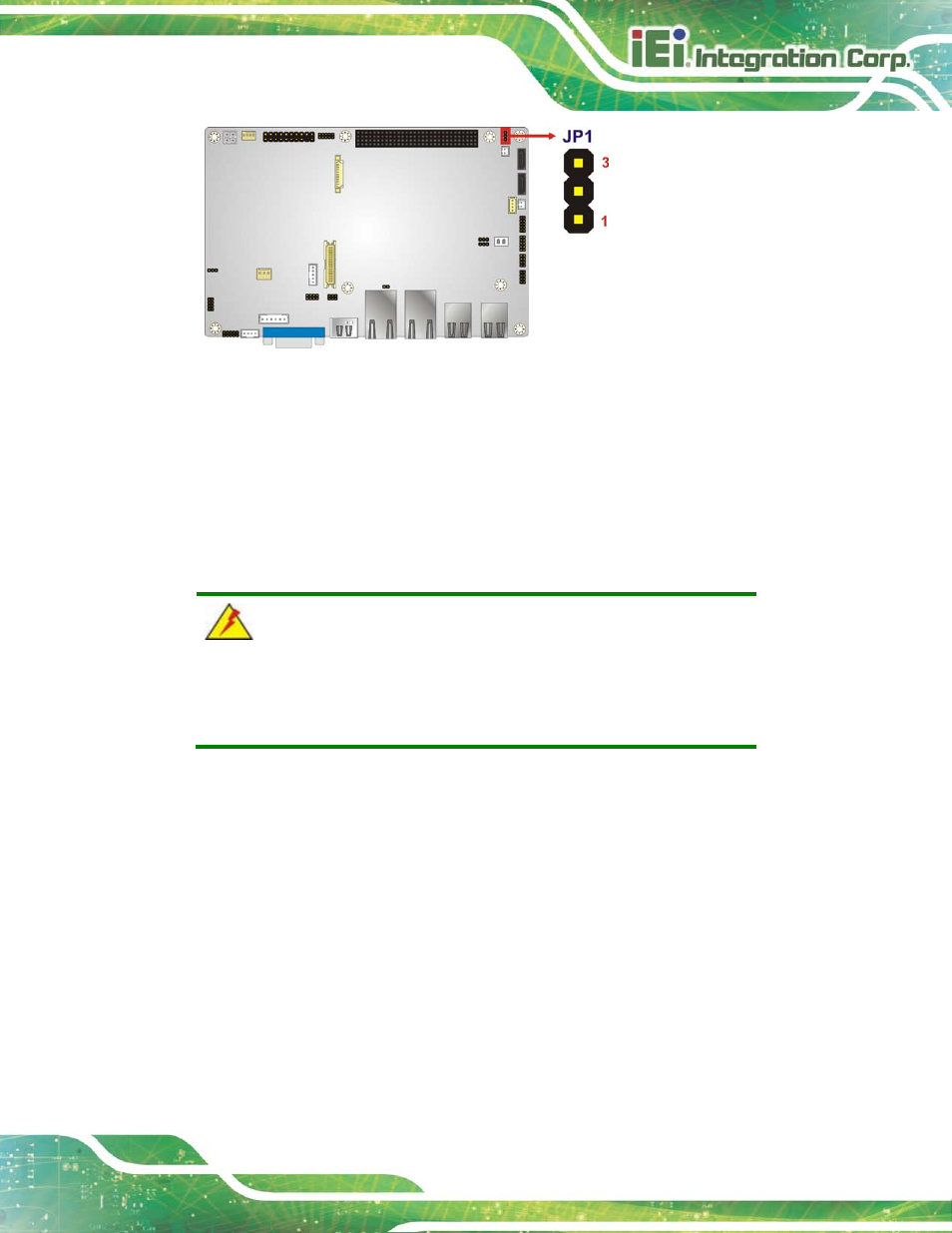

Figure 4-13: PCI-104 Power Select Jumper Location
4.5 In te rn a l P e rip h e ra l De vic e Co n n e c tio n s
This section outlines the installation of peripheral devices to the onboard connectors
4.5.1 AT/ATX P o we r Co n n e c tio n
Follow the instructions below to connect the NANO-HM650 to an AT or ATX power supply.
WARNING:
Disconnect the power supply power cord from its AC power source to
prevent a sudden power surge to the NANO-HM650.
S te p 1: Locate the power cable. The power cable is shown in the packing list in
Chapter 3.
S te p 2: Connect the Power Cable to the Motherboard. Connect the 4-pin (2x2) Molex
type power cable connector to the AT/ATX power connector on the motherboard.
See Figure 4-13.
