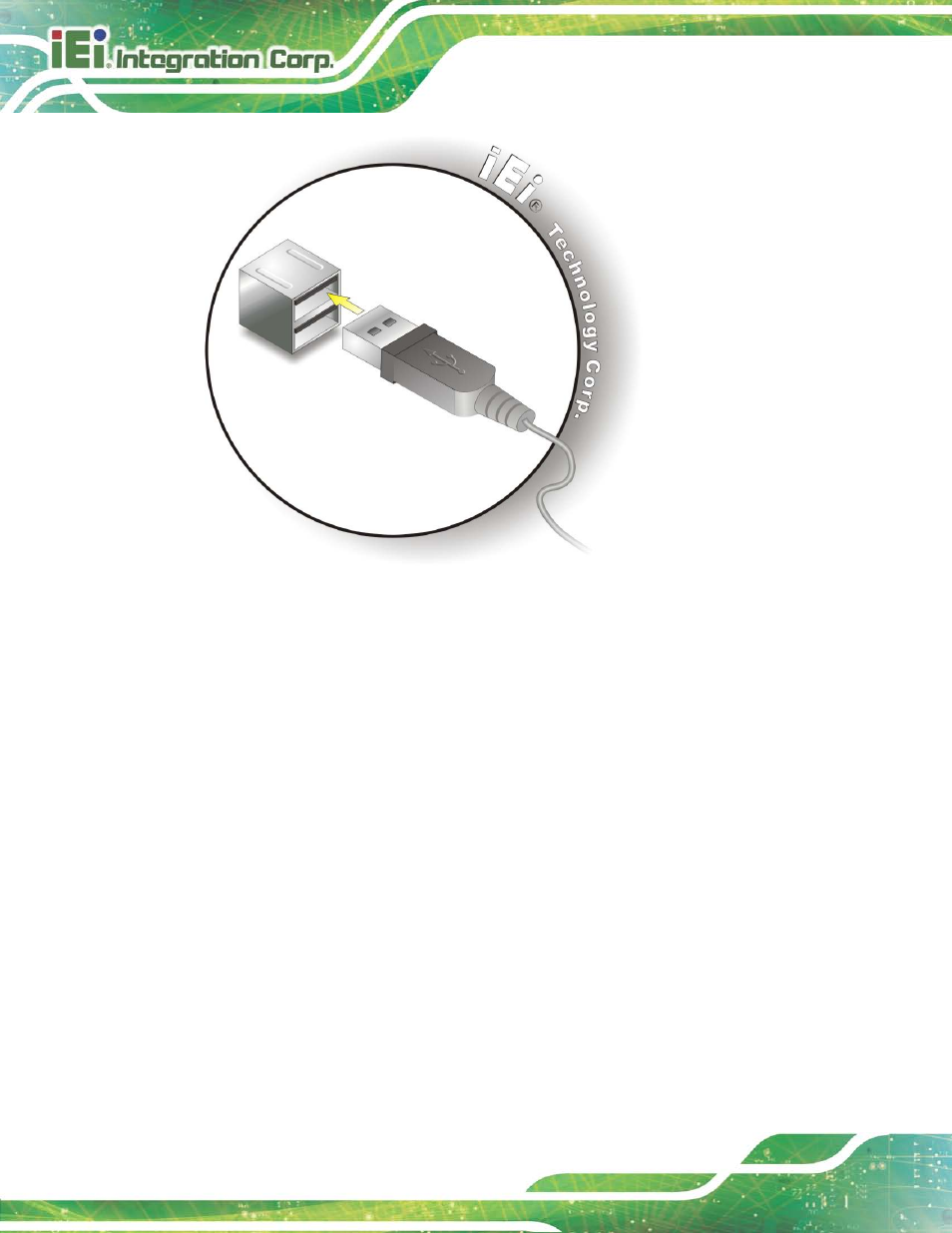

Figure 4-19: USB Connector

4.6.4 VGA Mo n ito r Co n n e c tio n

The NANO-HM650 has a single female DB-15 connector on the external peripheral

interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect

a monitor to the NANO-HM650, please follow the instructions below.

S te p 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

S te p 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

S te p 3:

Insert the VGA connector

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

NANO-HM650. See Figure 4-19.
