NANO-HM650 EP IC S BC

P a g e 4

1.3 Dim e n s io n s

The dimensions of the board are listed below:

 Length:

165 mm

 Width:

115 mm

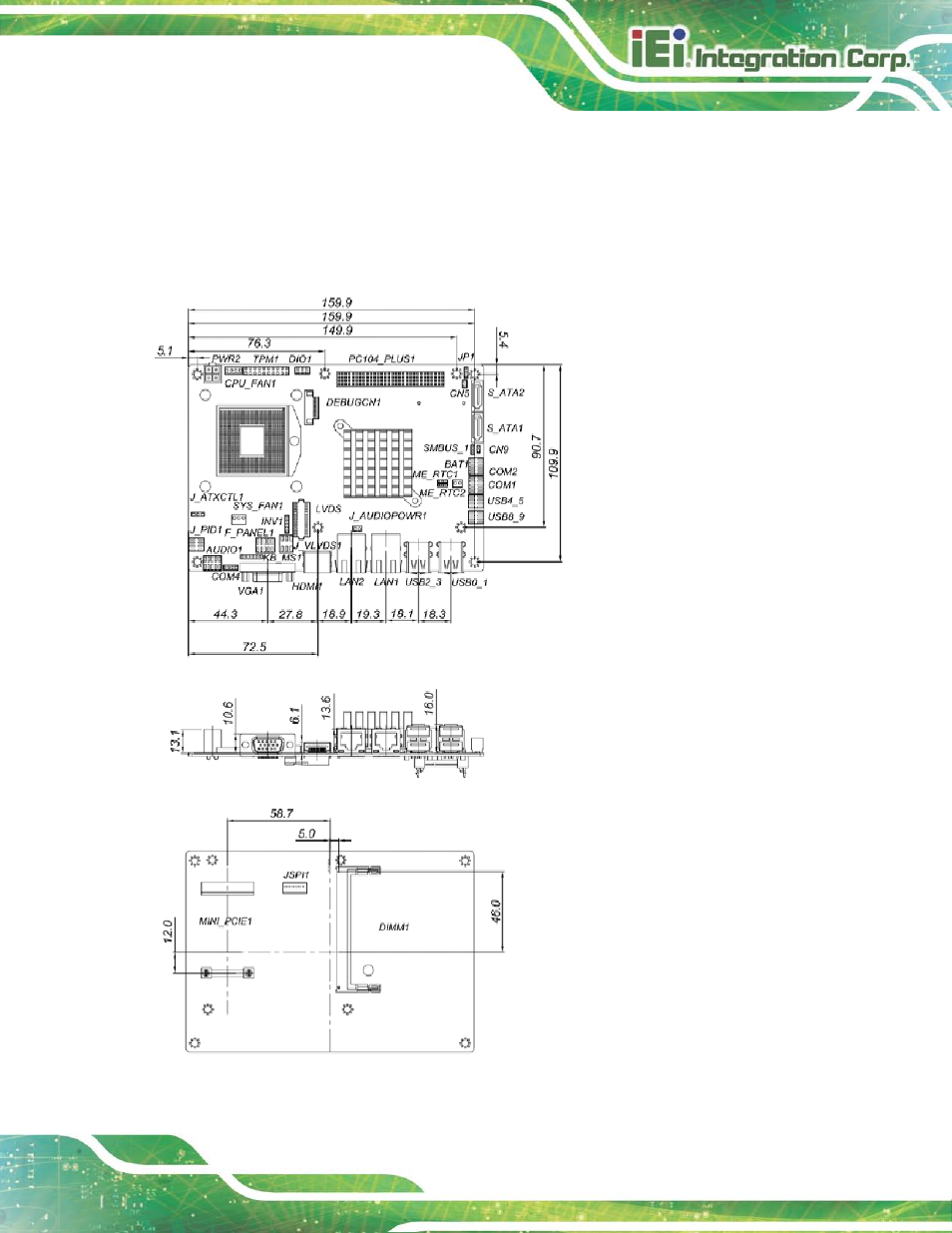

Figure 1-3: NANO-HM650 Dimensions (mm)
