NANO-HM650 EP IC S BC

P a g e 21

Pin

Description

4

LPC_AD3

5

LPC_AD2

6

LPC_AD1

7

LPC_AD0

8

LPC_FRAME#

9

+3.3V

Table 3-7: Debug Port Connector Pinouts

3.2.7 Dig ita l I/O Co n n e c to r

CN La b e l:

DIO1

CN Typ e :

10-pin header

CN Lo c a tio n :

See Figure 3-8

CN P in o u ts :

See Table 3-8

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

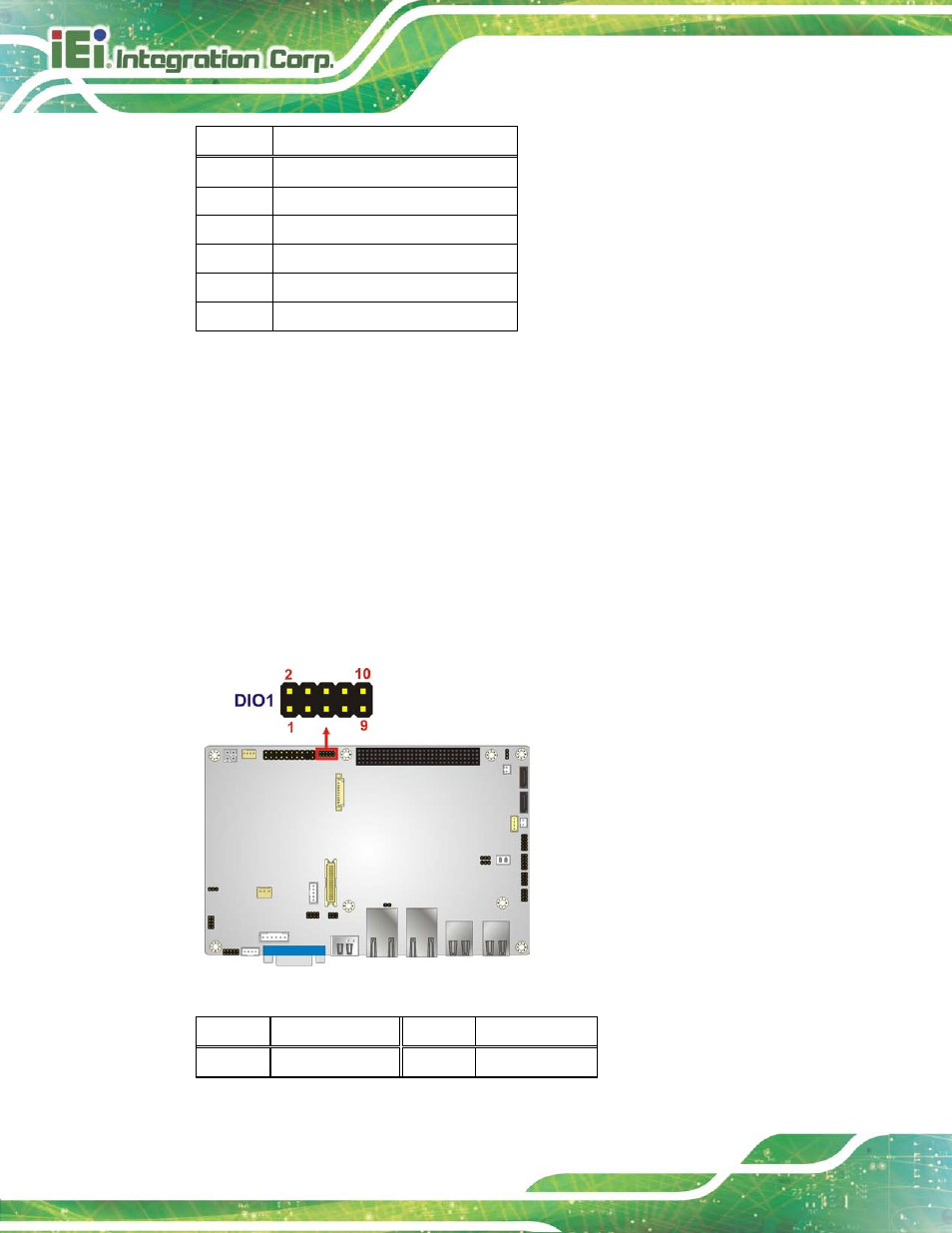

Figure 3-8: Digital I/O Connector Location

Pin

Description

Pin

Description

1

GND

2

+5V
