Clear CMOS Description
Short 1 - 2 Normal Operation Default
Short 2 - 3 Clear CMOS Setup
Table 4-4: Clear CMOS Jumper Settings

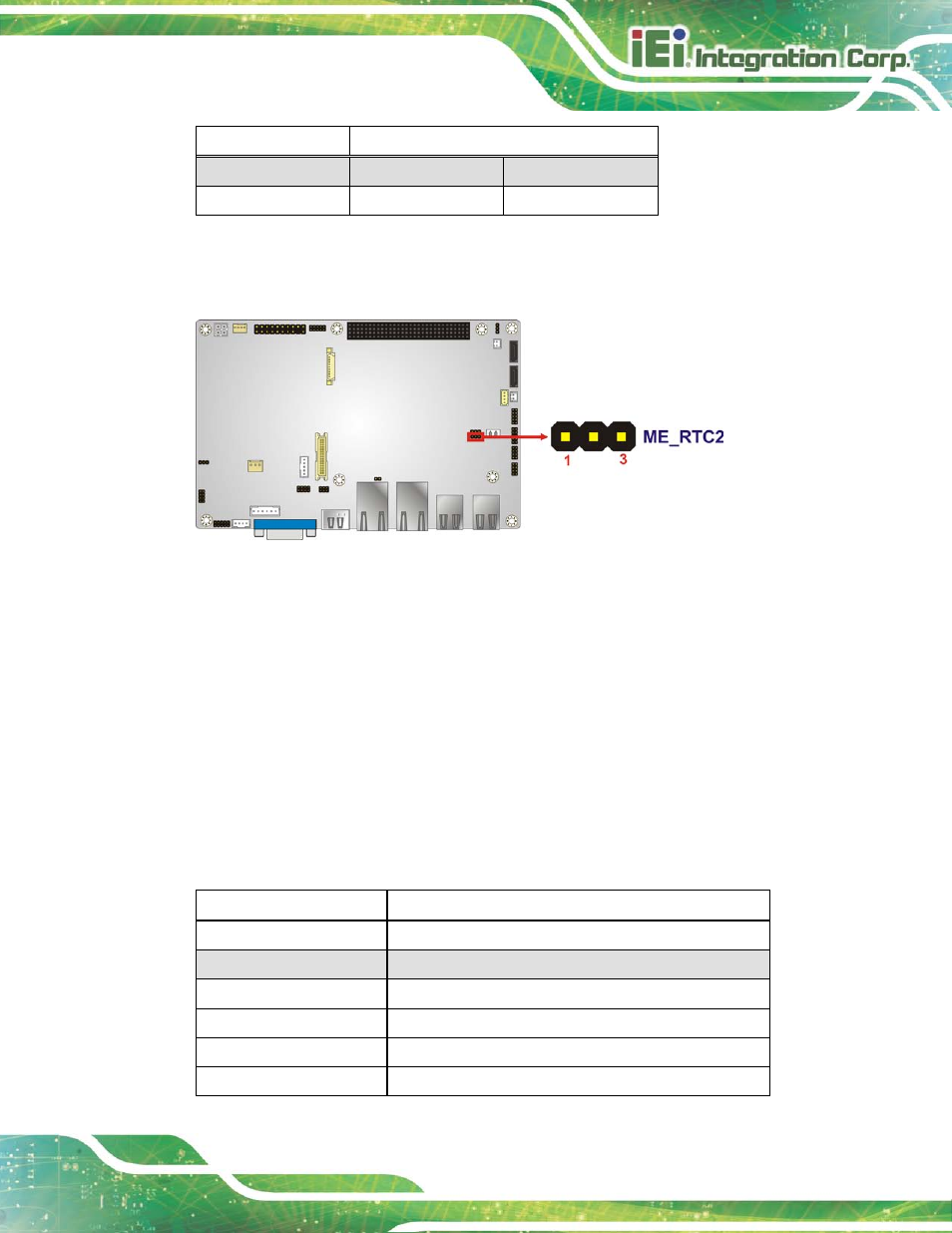

The location of the clear CMOS jumper is shown in Figure 4-8 below.
Figure 4-9: Clear CMOS Jumper
4.4.4 LCD P a n e l Typ e J u m p e r
J u m p e r La b e l: J _P ID1
J u m p e r Typ e : 8-pin header
J u m p e r S e ttin g s : See Table 4-5
J u m p e r Lo c a tio n : See Figure 4-9
The LCD Panel Type jumper allows the LCD panel type to be set. The LCD Panel Type
jumper settings are shown in Table 4-5.
Pin Description
Open 640 x 480 (18-bit)
1-2 800 x 600 (18-bit)
3-4 1024 x 768 (18-bit)
1-2 and 3-4 1024 x 768 (24-bit)
5-6 1024 x 768 (48-bit)
1-2 and 5-6 1280 x 1024 (48-bit)
