NANO-HM650 EP IC S BC
P a g e 46

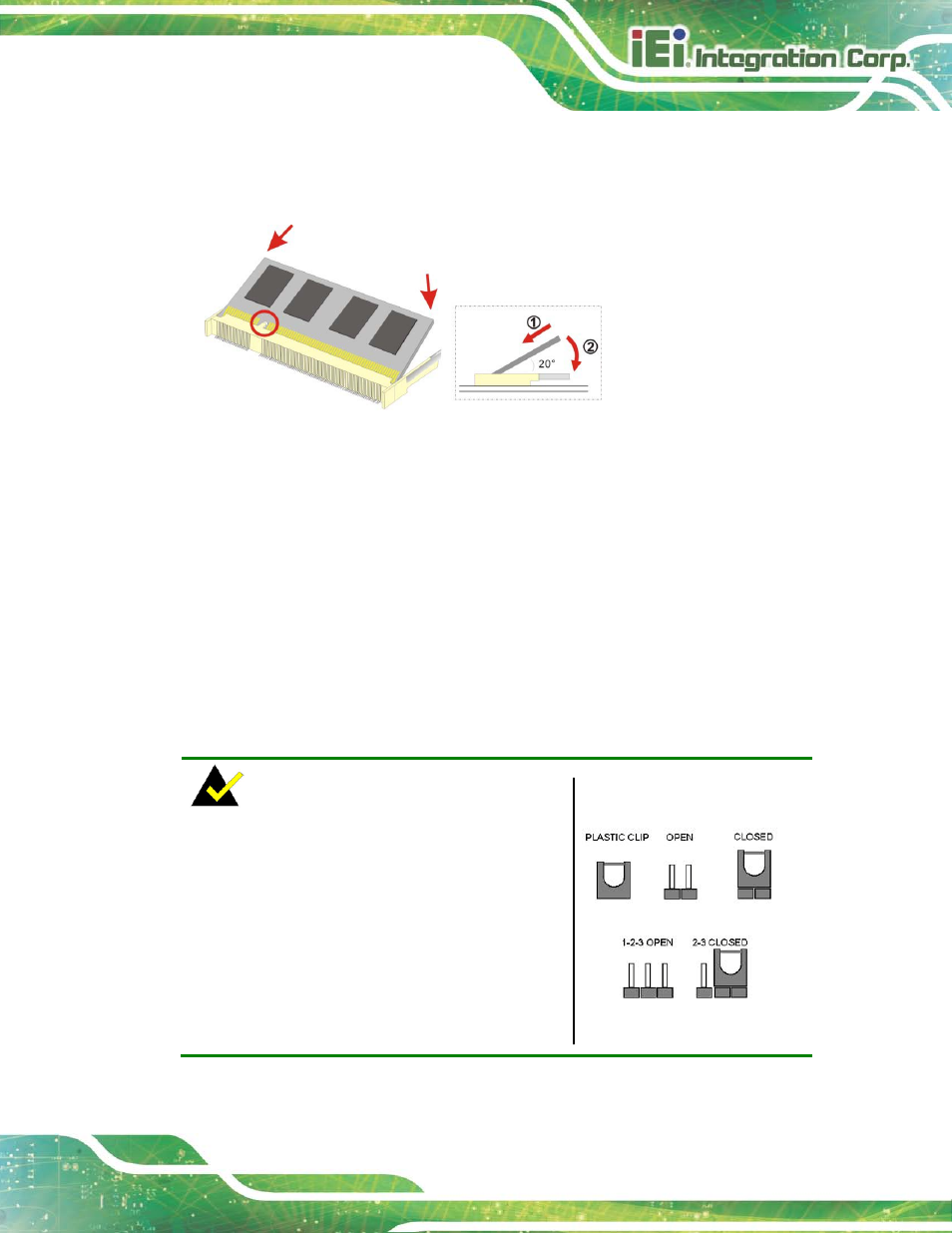

4.3.3 S O-DIMM In s ta lla tio n
To install an SO-DIMM, please follow the steps below and refer to Figure 4-4.
Figure 4-5: SO-DIMM Installation
S te p 1:
Locate the SO-DIMM socket. Place the board on an anti-static mat.
S te p 2:
Align the SO-DIMM with the socket. Align the notch on the memory with the
notch on the memory socket.
S te p 3:
Insert the SO-DIMM. Push the memory in at a 20º angle. (See Figure 4-4)
S te p 4:
Seat the SO-DIMM. Gently push downwards and the arms clip into place. (See
S te p 0:
4.4 J u m p e r S e ttin g s
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper.
Figure 4-6: Jumper Locations
