CN Lo c a tio n : See Figure 3-11
CN P in o u ts : See Table 3-11
The front panel connector connects to external switches and indicators to monitor and
controls the motherboard. These indicators and switches include:
 Power button
 Reset
 Power LED
 HDD LED

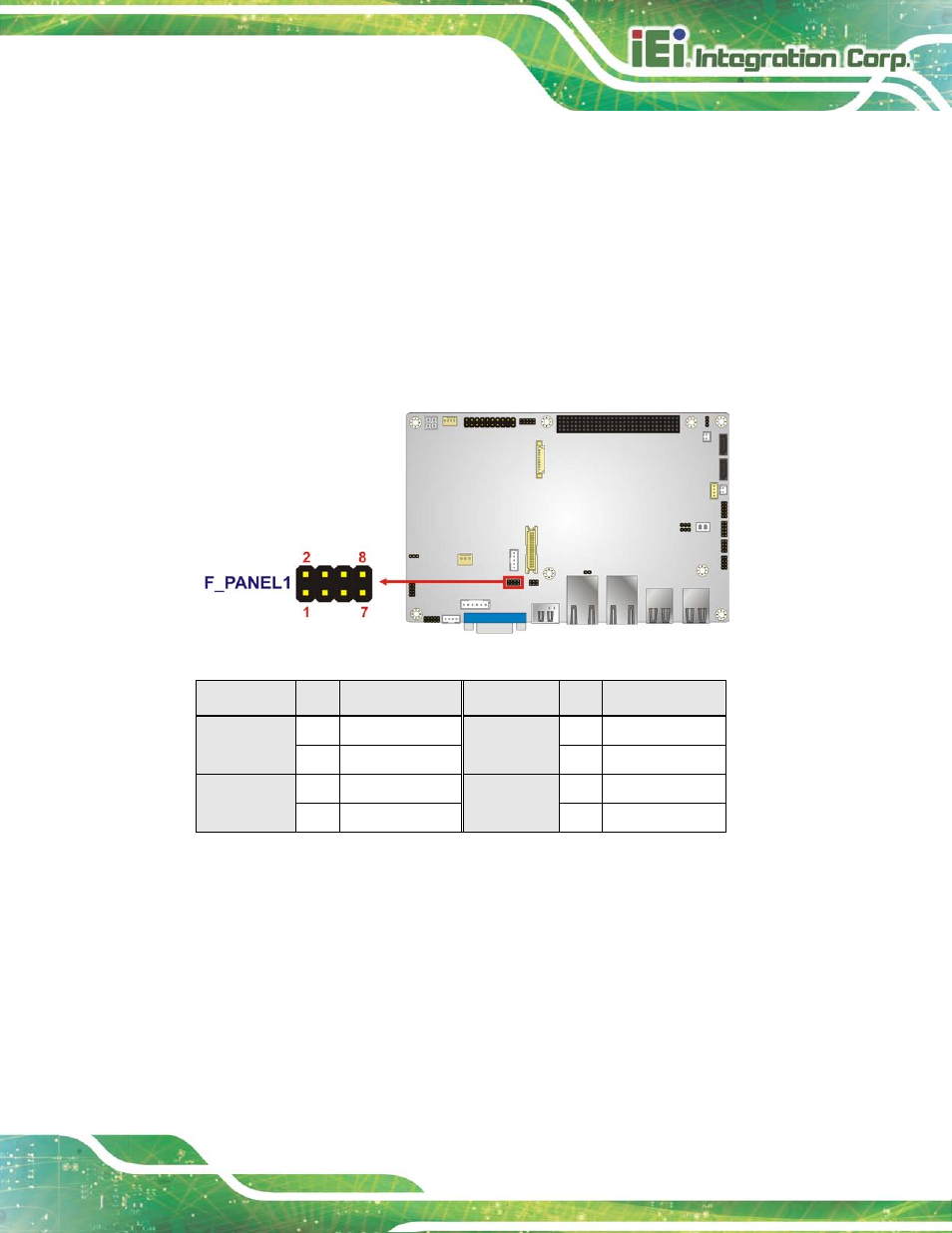

Figure 3-11: Front Panel Connector Location
FUNCTION P IN DES CRIP TION FUNCTION P IN DES CRIP TION
Power Button 1 PWRBTN_SW# Power LED 2 +V5S
3 GND 4 GND
SATA LED 5 +V5S Reset 6 EXTRST-
7 SATA_LED# 8 GND
Table 3-11: Front Panel Connector Pinouts
3.2.11 Ke yb o a rd /Mo u s e Co n n e c to r
CN La b e l: KB_MS 1
CN Typ e : 6-pin wafer
CN Lo c a tio n : See Figure 3-12
CN P in o u ts : See Table 3-12
