Pin Description Pin Description
3 DGPO3 4 DGPO2
5 DGPO1 6 DGPO0
7 DGPI3 8 DGPI2
9 DGPI1 10 DGPI0
Table 3-8: Digital I/O Connector Pinouts
3.2.8 Fa n Co n n e c to r (CP U)
CN La b e l: CP U_FAN1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-9
CN P in o u ts : See Table 3-9
The fan connector attaches to a CPU cooling fan.

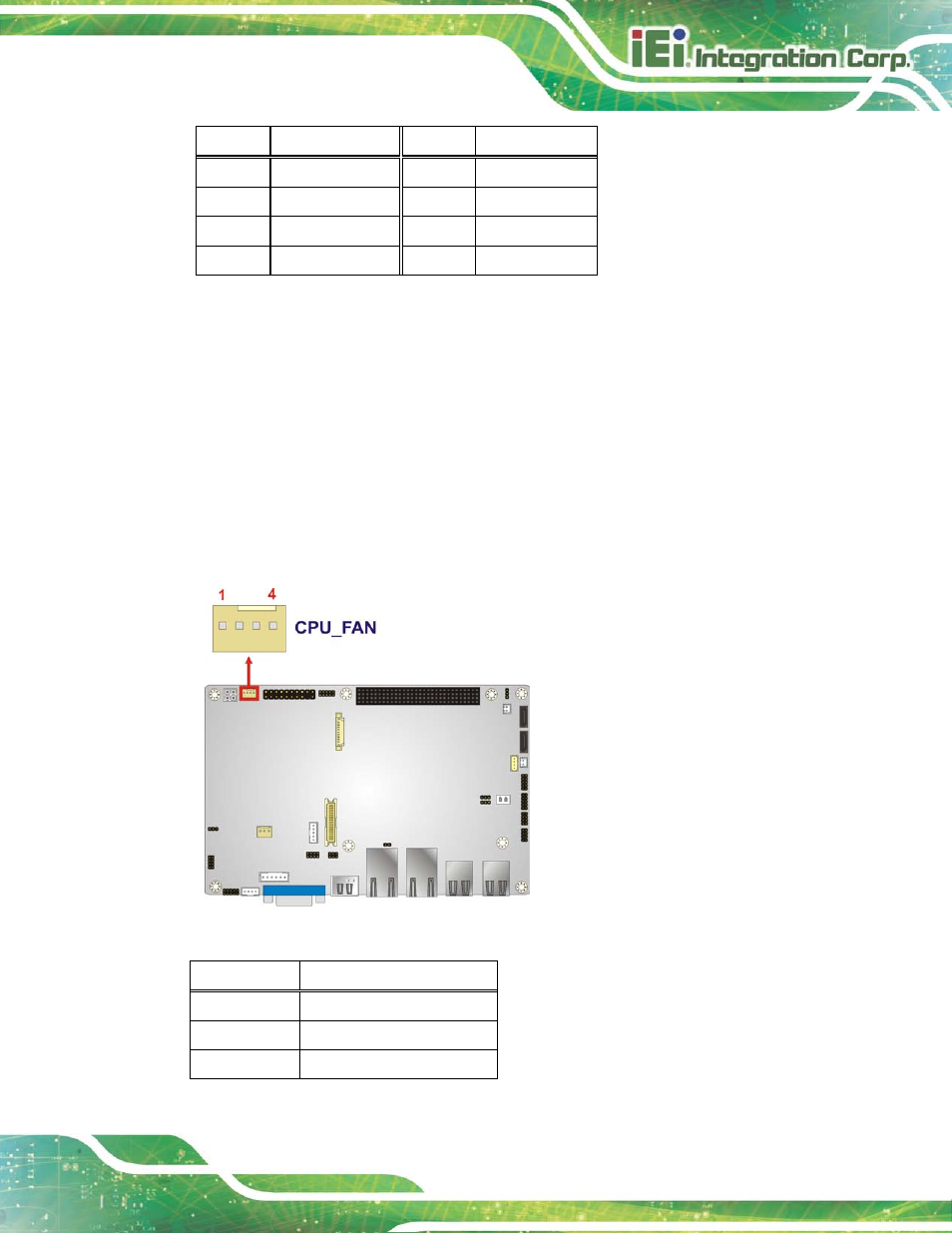

Figure 3-9: CPU Fan Connector Location
Pin Description
1 GND
2 +12V
3 FANIO1
