NANO-HM650 EP IC S BC

P a g e 48

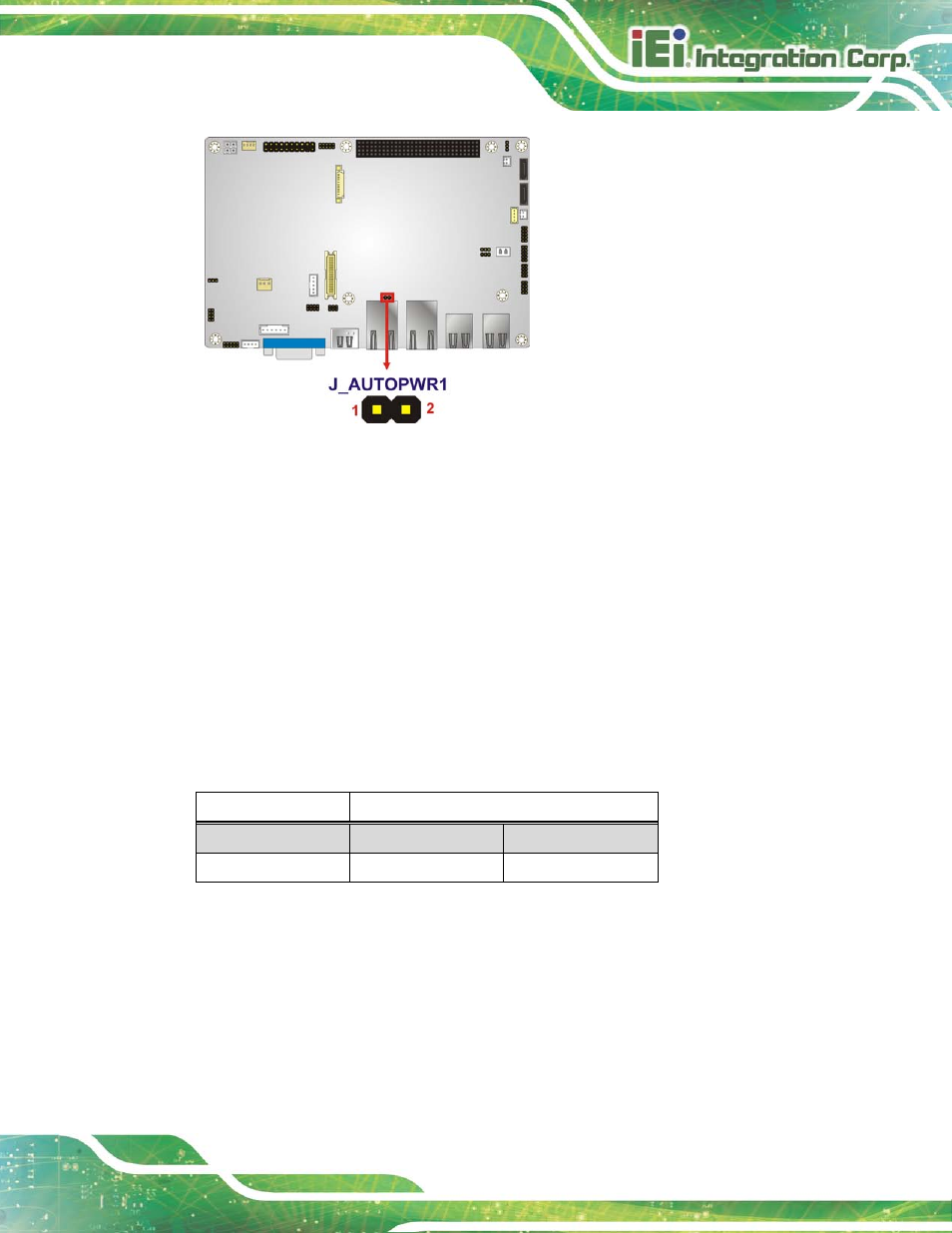

Figure 4-7: AT Auto Button Select Jumper Settings

4.4.2 AT/ATX P o we r S e le c t J u m p e r

J u m p e r La b e l:

J_ATXCTL1

J u m p e r Typ e :

3-pin header

J u m p e r S e ttin g s :

See Table 4-3

J u m p e r Lo c a tio n :

See Figure 4-7

The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.

AT/ATX Power Select jumper settings are shown in Table 4-3.

AT Power Select

Description

Short 1 - 2

ATX Mode

Default

Short 2 – 3

AT Mode

Table 4-3: AT/ATX Power Select Jumper Settings

The location of the AT/ATX Power Select jumper is shown in Figure 4-7 below.
