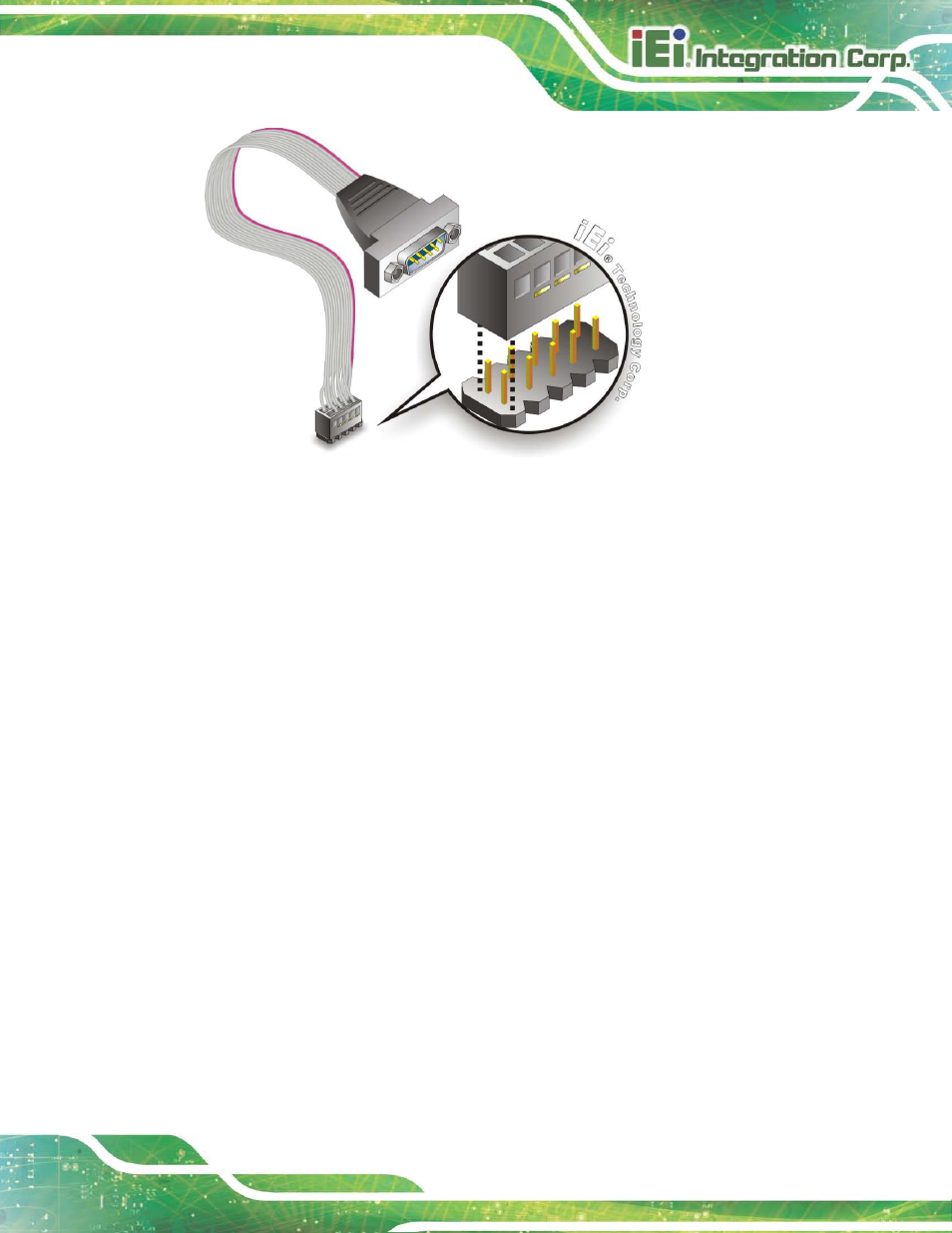

Figure 4-17: Single RS-232 Cable Connection
S te p 3: Secure the bracket. The single RS-232 connector has two retention screws
that must be secured to a chassis or bracket.
S te p 4: Connect the serial device. Once the single RS-232 connector is connected to
a chassis or bracket, a serial communications device can be connected to the
system.
4.6 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c tio n
The following external peripheral devices can be connected to the external peripheral
interface connectors.
 HDMI devices
 RJ-45 Ethernet cable connector
 USB devices
 VGA monitor
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding NANO-HM650 external peripheral interface connector making
sure the pins are properly aligned.
