NANO-9452 EPIC Motherboard
Page 77

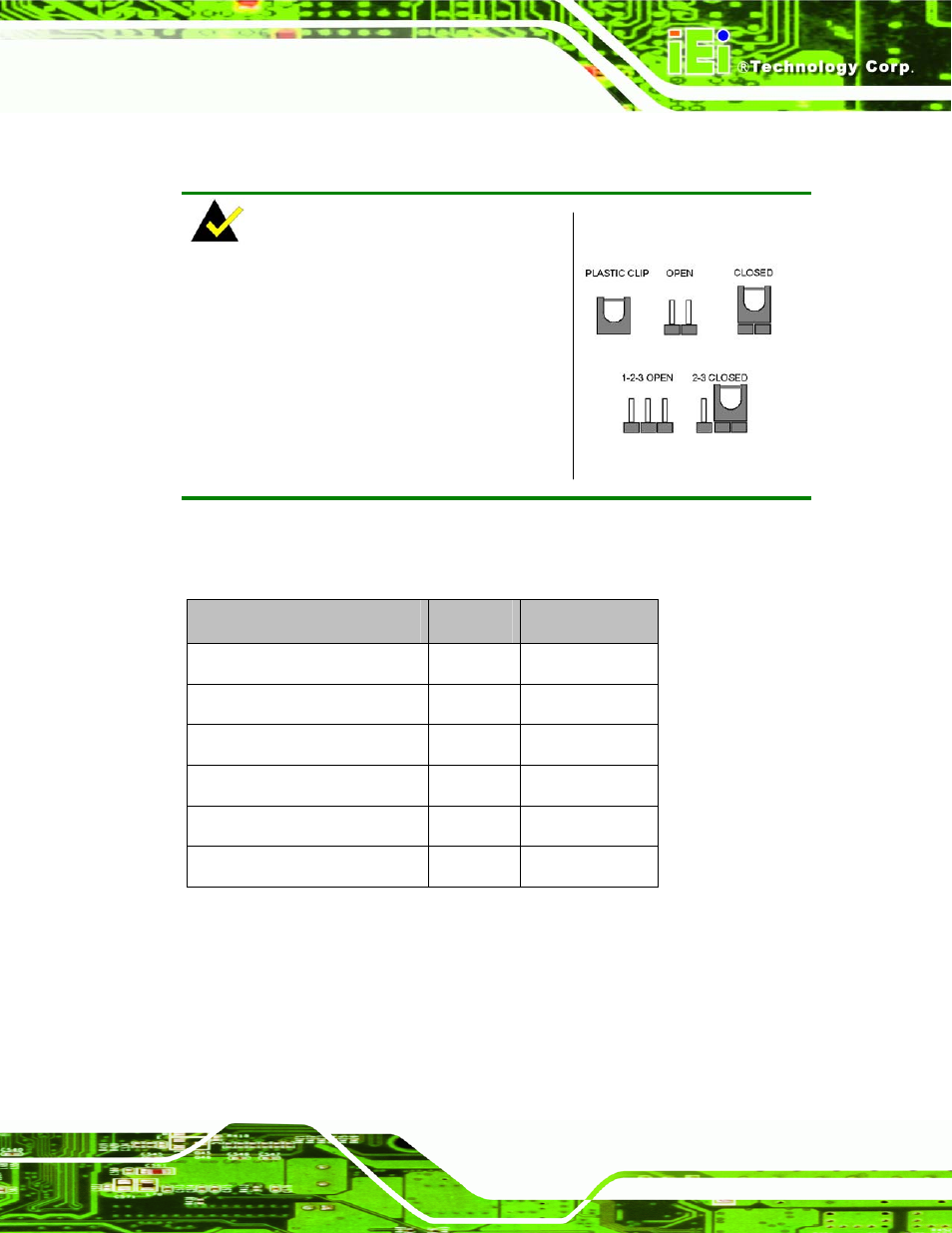

5.4 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper. Figure 5-8: Jumper Locations
Before the NANO-9452 is installed in the system, the jumpers must be set in accordance
with the desired configuration. The jumpers on the NANO-9452 are listed in Table 5-1.
Description Label Type
CF card setup JCF1 3-pin header
Clear CMOS J_CMOS1 3-pin header
COM 2 function select JP1 5-pin header
LVDS voltage selection J_VLVDS1 3-pin header
PC104+ VIO Selector JP2
PC104+ SERIRQ# support JP3
Table 5-1: Jumpers
