NANO-9452 EPIC Motherboard
Page 57
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
5 Transmit Data (TXD) 6 Clear To Send (CTS)
7 Data Terminal Ready (DTR) 8 Ring Indicator (RI)
9 Ground (GND) 10 NC
Table 4-20: COM3 and COM4
4.2.19 TV Out Connector
CN Label: TV1
CN Type: 6-pin header (2x3)
CN Location: See Figure 4-21
CN Pinouts: See Table 4-21
The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA
connector. The TV out connector makes displaying media data on a television easier.
HDTV resolutions up to 1080i / 1080P by component interface are also supported.

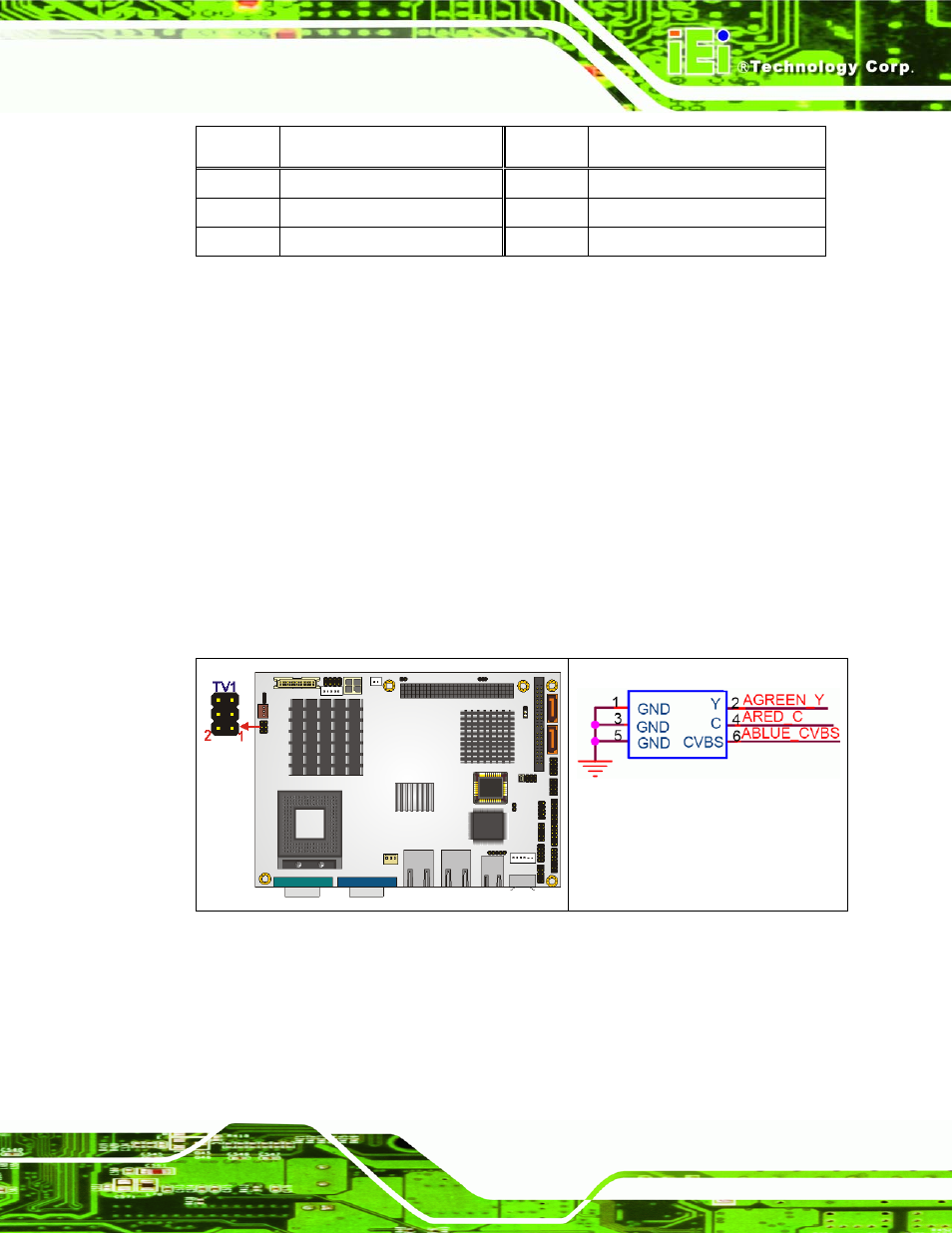

Figure 4-21: TV Connector Pinout Locations
