NANO-9452 EPIC Motherboard

Page 233

Step 3:

Reset Disk Verification. After reading the warning, press Y to reset the

selected disks as non-RAID, or N to return to the Reset RAID Data menu.

See Figure E-14.

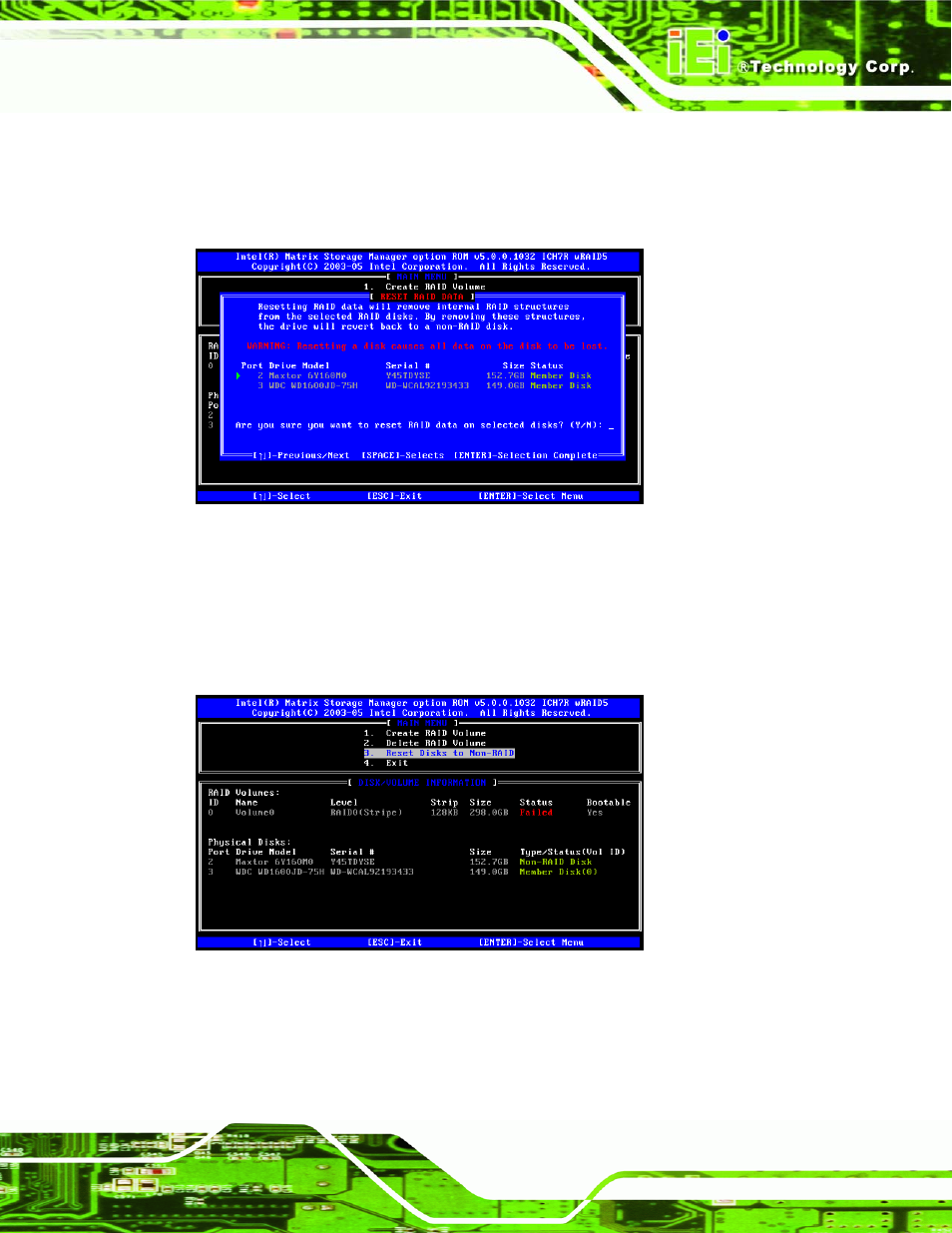

Figure E-14: Reset Disk Verification

Step 4:

Disk Drive and RAID Volume Status. After the disk drives have been reset, the

Matrix Storage Manager Main menu is shown indicating the status of the RAID

volumes and disk drives. See Figure E-15.

Step 0:

Figure E-15: Disk Drive and RAID Volume Status
