NANO-9452 EPIC Motherboard
Page 225
Step 1: Select “Create RAID Volume.” Use the arrow keys to highlight Create RAID
Volume and press E NTER . See Figure E-1.

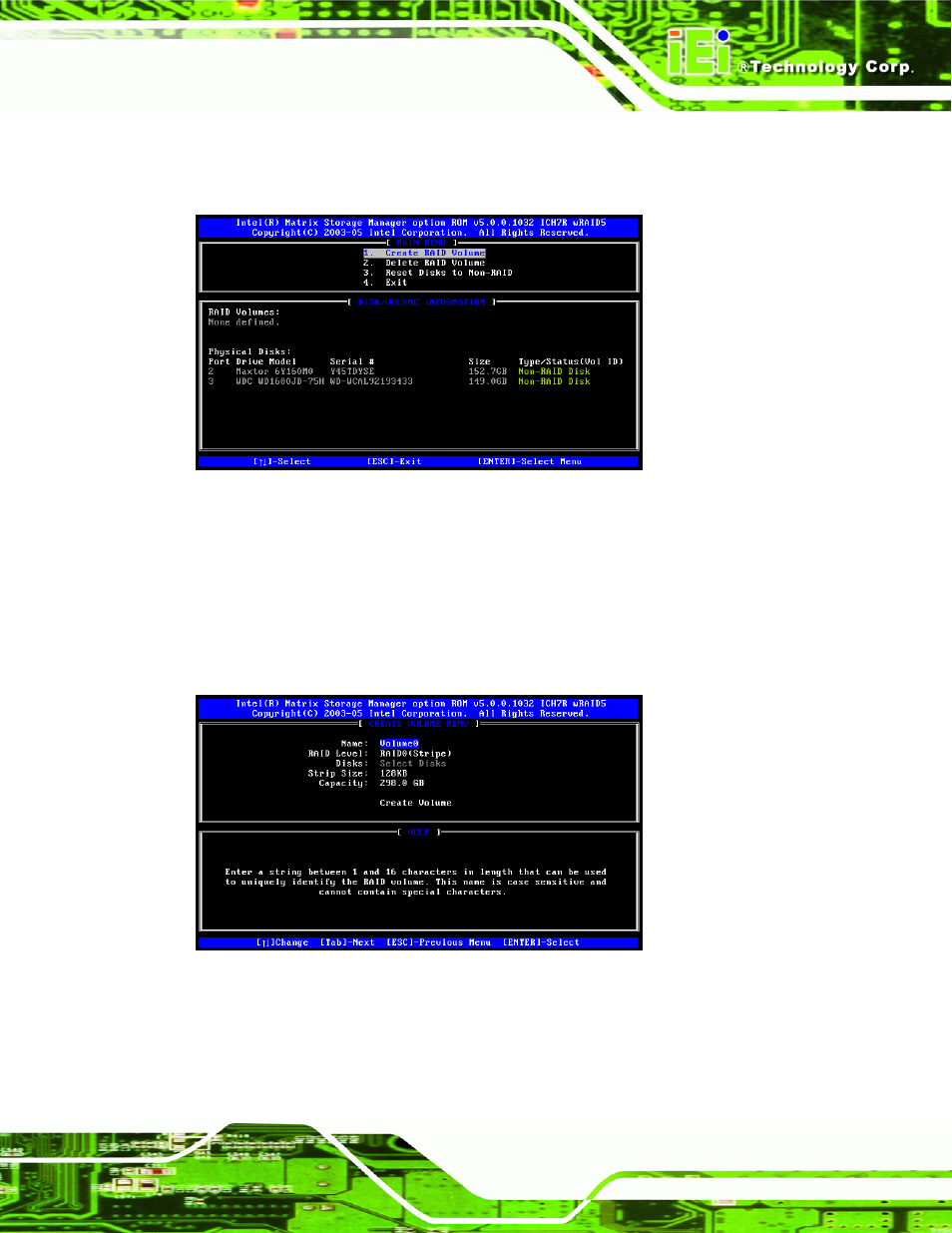

Figure E-1: Matrix Storage Manager Main Menu
Step 2: Name the RAID volume. Enter a name for the RAID volume, or press E NTER to
accept the default volume name. Upper and lower case alphabetic, numeric,
space, and underscore characters are all applicable for naming an array. See
Figure E-2.
Figure E-2: Create RAID Volume Name
