NANO-9452 EPIC Motherboard
Page 94
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding NANO-9452 external peripheral interface connector making
sure the pins are properly aligned.
5.7.1 VGA Monitor Connection
The NANO-9452 has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor
to the NANO-9452, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector . Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
NANO-9452. See Figure 5-20.

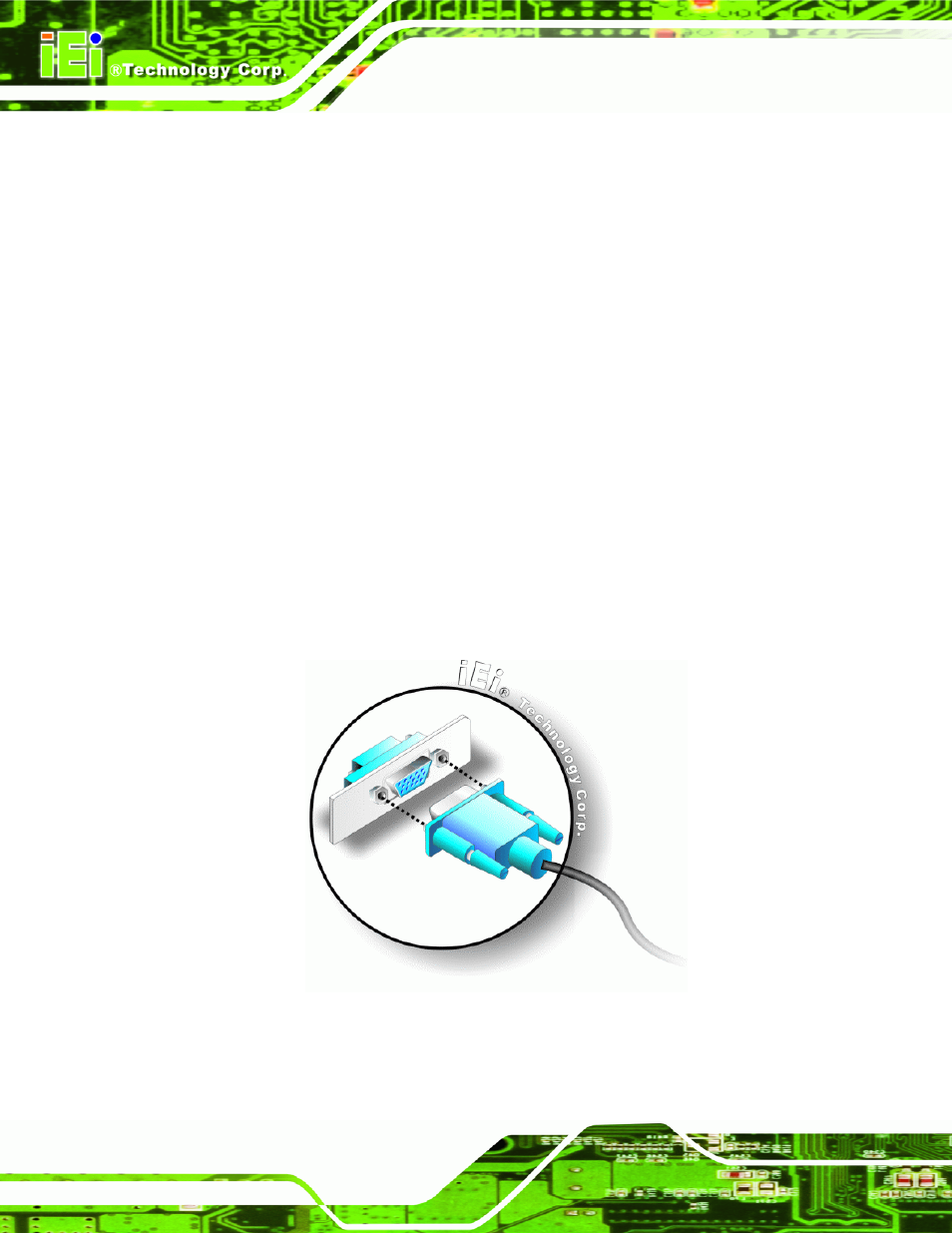

Figure 5-20: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
