NANO-9452 EPIC Motherboard
Page 8
2.1 Overview
This chapter describes the specifications and on-board features of the NANO-9452 in
detail.
2.2 Dimensions
2.2.1 Board Dimensions
The dimensions of the board are listed below:
Length: 165mm
Width: 115mm

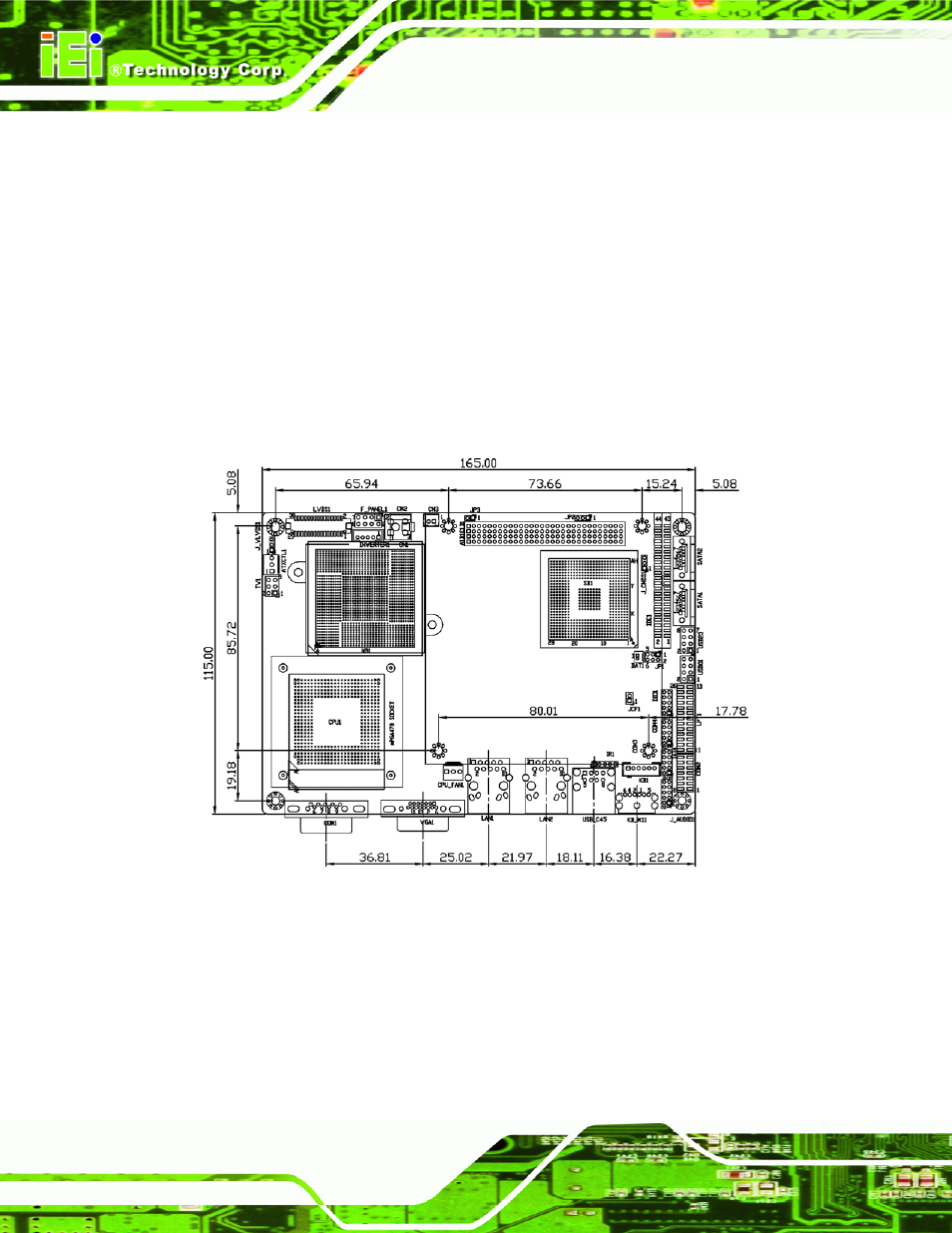

Figure 2-1: NANO-9452 Dimensions (mm)
2.2.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 2-2.
