NANO-9452 EPIC Motherboard

Page 91

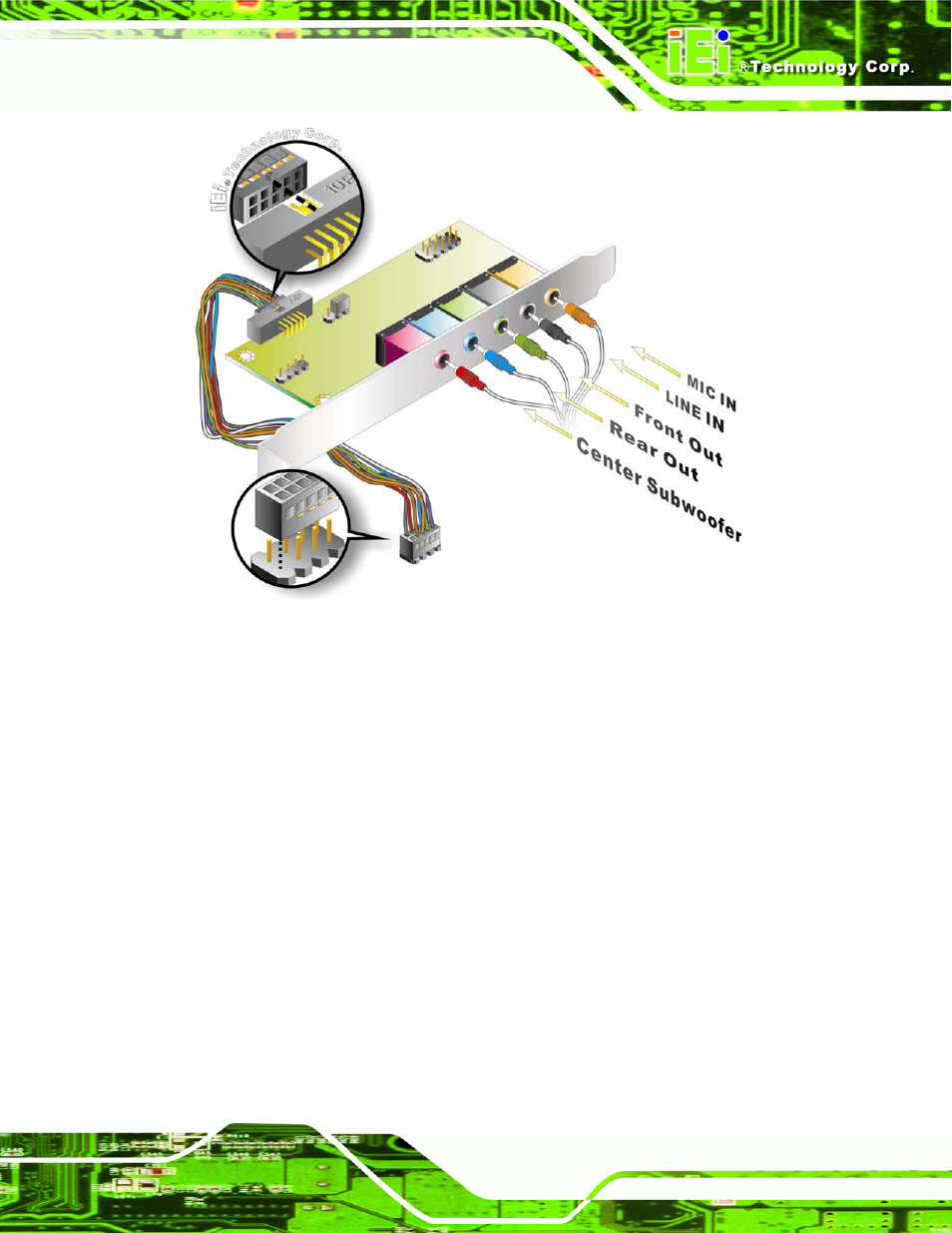

Figure 5-17: 5.1 Channel Audio Kit

Step 4:

Mount the audio kit onto the chassis. Once the audio kit is connected to the

NANO-9452, secure the audio kit bracket to the system chassis.

Step 5:

Connect the audio devices. Connect one speaker to the line-in audio jack, one

speaker to the line-out audio jack and a microphone to the mic-in audio jack.

Step 6:

Install the driver. If the 5.1 channel audio kit is used, the ALC655 Realtek

codec driver must be installed. Refer to Chapter 7 for driver installation

instructions.

Step 0: Step 0:

5.6.5 SATA Drive Connection

The NANO-9452 is shipped with two SATA drive cables and one SATA drive power cable.

To connect the SATA drives to the connectors, please follow the steps below.

Step 1:

Locate the connectors. The locations of the SATA drive connectors are shown
