NANO-9452 EPIC Motherboard
Page 84
Jumper Location: See Figure 5-14
The PCI-104 SERIRQ# Support jumper enables or disable SERIRQ# on the PCI-104.
The PCI-104 SERIRQ# Support jumper settings are shown in Table 5-5.
AT Power Select Description
Open None Default
Short Support
Table 5-7: PCI-104 SERIRQ# Support Jumper Settings
The PCI-104 SERIRQ# Support jumper location is shown in Figure 5-12.

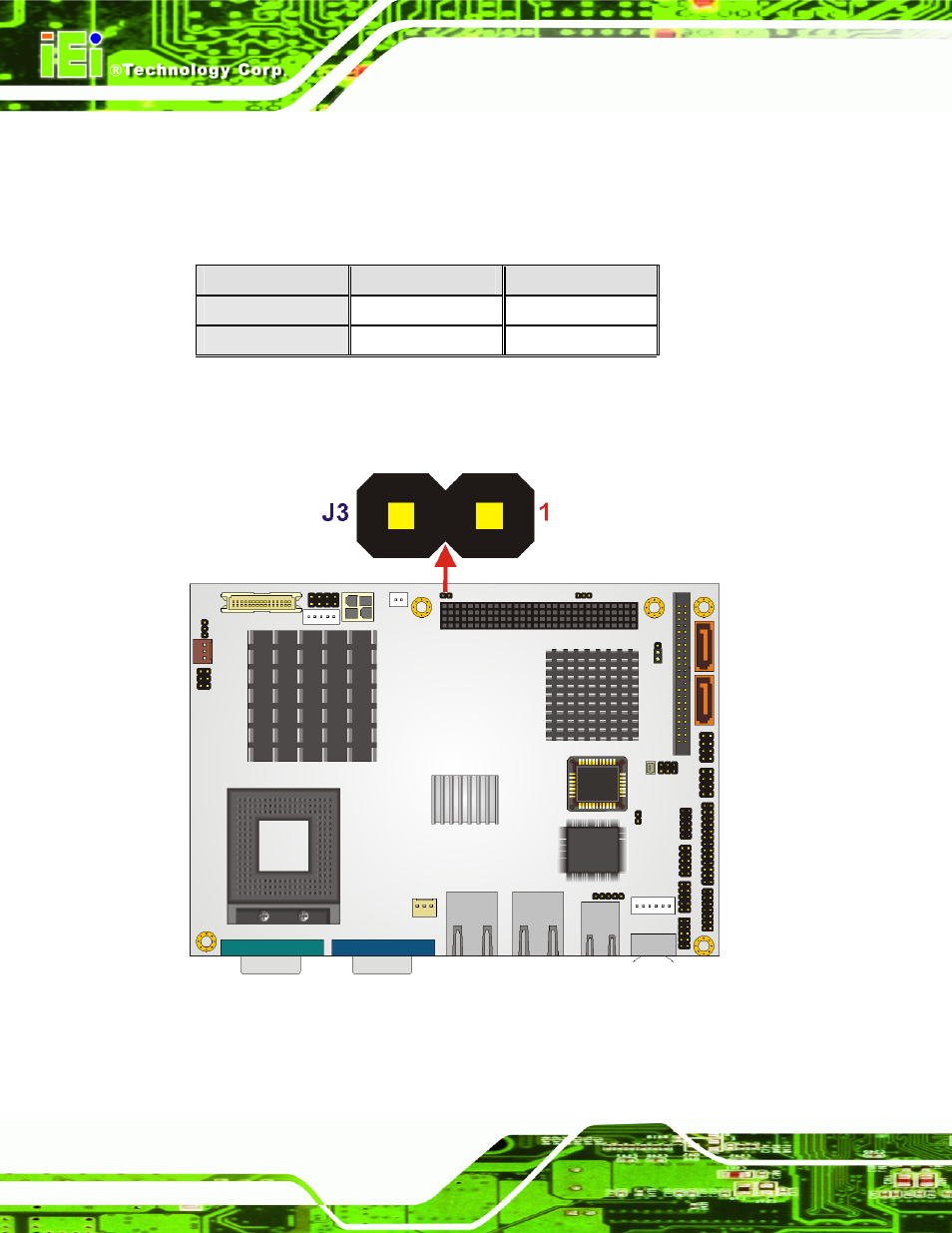

Figure 5-14: PCI-104 SERIRQ# Support Jumper Pinout Locations
5.5 Chassis Installation
