NANO-9452 EPIC Motherboard
Page 47

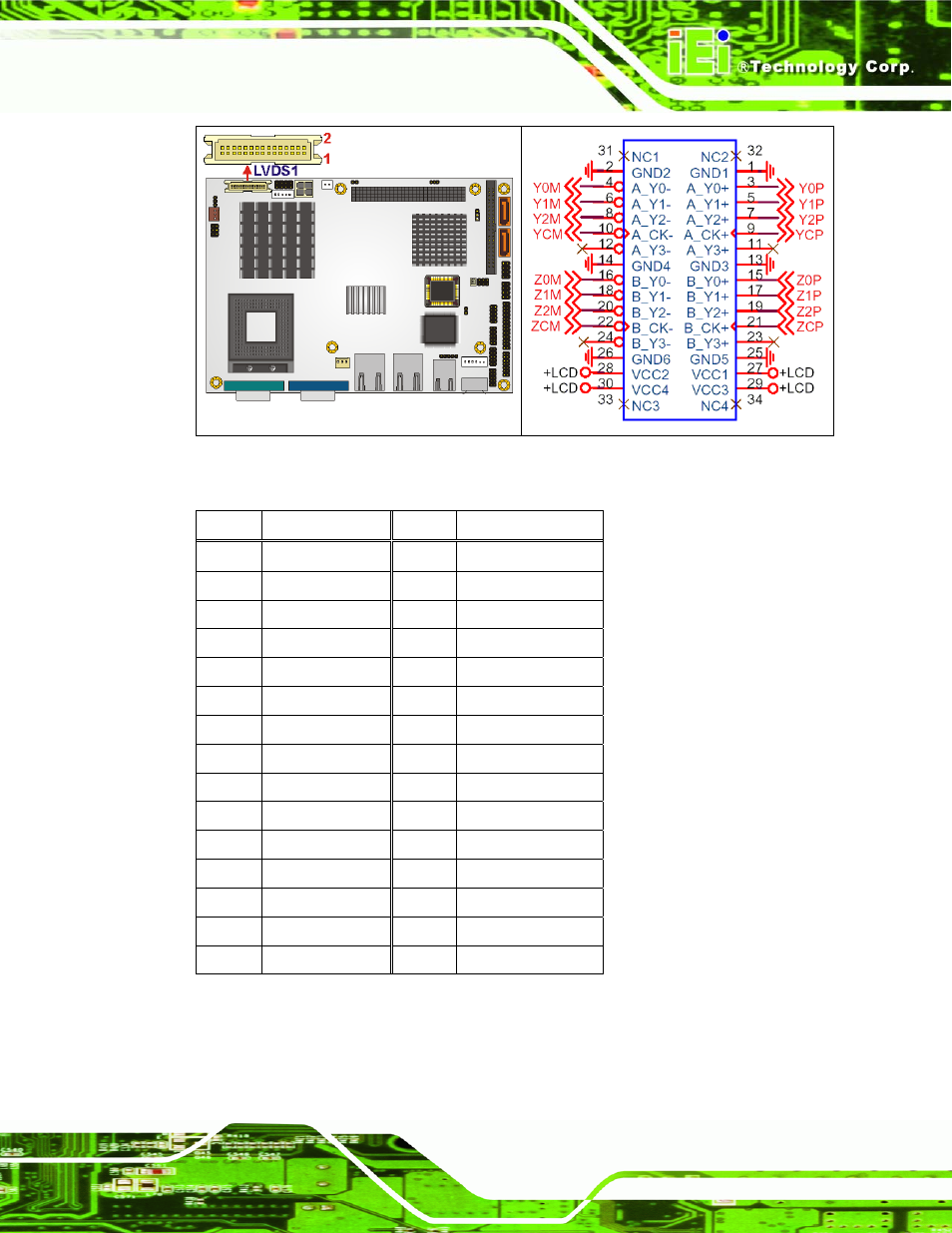

Figure 4-14: LVDS LCD Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 2 GROUND
3 LVDSA_Y0+ 4 LVDSA_Y0-
5 LVDSA_Y1+ 6 LVDSA_Y1-
7 LVDSA_Y2+ 8 LVDSA_Y2-
9 LVDSA_CLK+ 10 LVDSA_CLK-
11 N/C 12 N/C
13 GROUND 14 GROUND
15 LVDSB_Y0+ 16 LVDSB_Y0-
17 LVDSB_Y1+ 18 LVDSB_Y1-
19 LVDSB_Y2+ 20 LVDSB_Y2-
21 LVDSB_CLK+ 22 LVDSB_CLK-
23 N/C 24 N/C
25 GROUND 26 GROUND
27 VCC_LVDS 28 VCC_LVDS
29 VCC_LVDS 30 VCC_LVDS
Table 4-14: LVDS LCD Port Connector Pinouts
