3 data flow – IEI Integration NANO-9452 v1.00 User Manual
Page 27
NANO-9452 EPIC Motherboard
Page 9

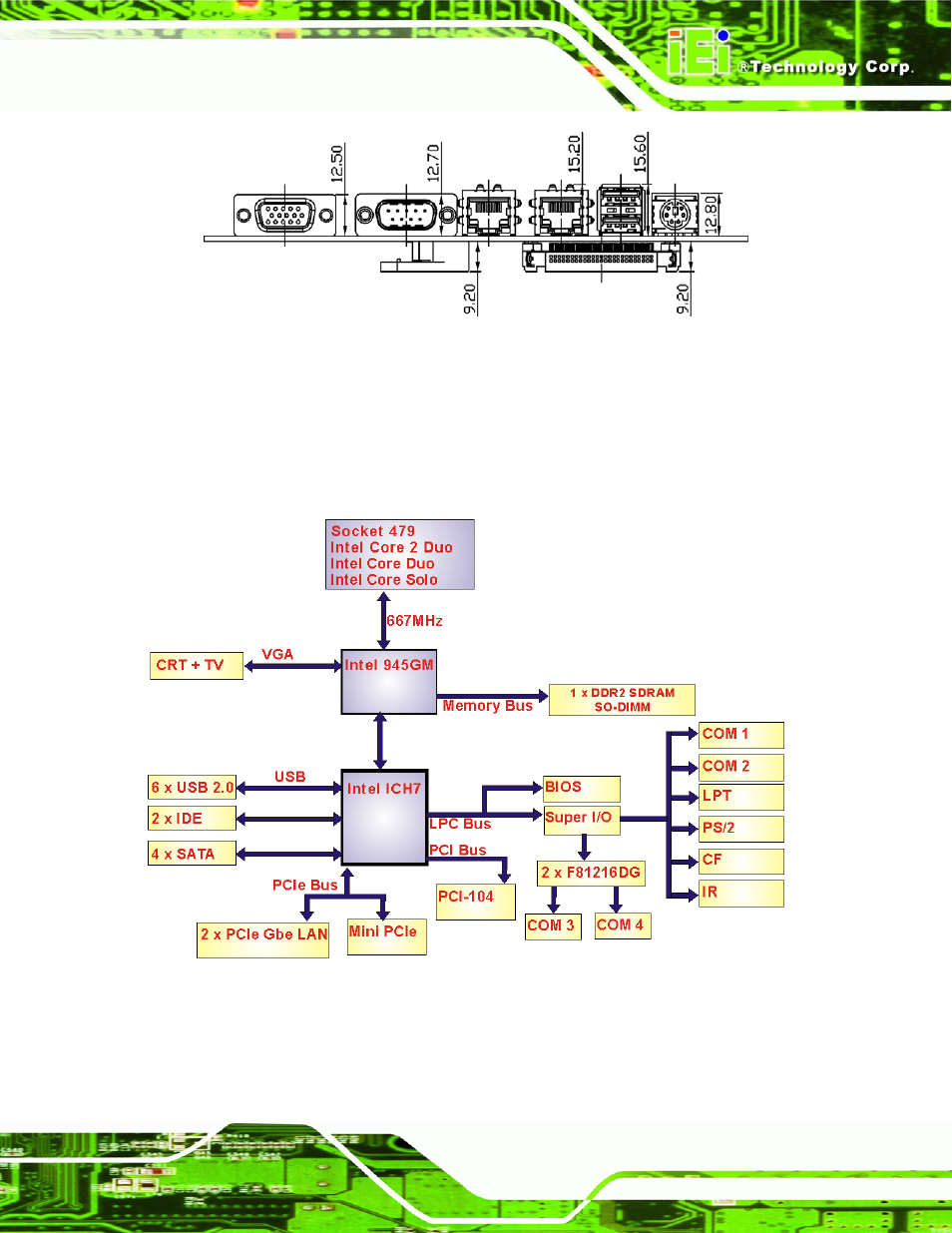

Figure 2-2: External Interface Panel Dimensions (mm)
2.3 Data Flow
Figure 2-3 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.
Figure 2-3: Data Flow Block Diagram
