NANO-9452 EPIC Motherboard
Page 74
5.3.3 SODIMM Installation
WARNING:
Using incorrectly specified SODIMM may cause permanently damage
the NANO-9452. Please make sure the purchased SODIMM complies
with the memory specifications of the NANO-9452. SODIMM
specifications compliant with the NANO-9452 are listed in Chapter 2.
To install a SODIMM into a SODIMM socket, please follow the steps below and refer
Figure 5-6.

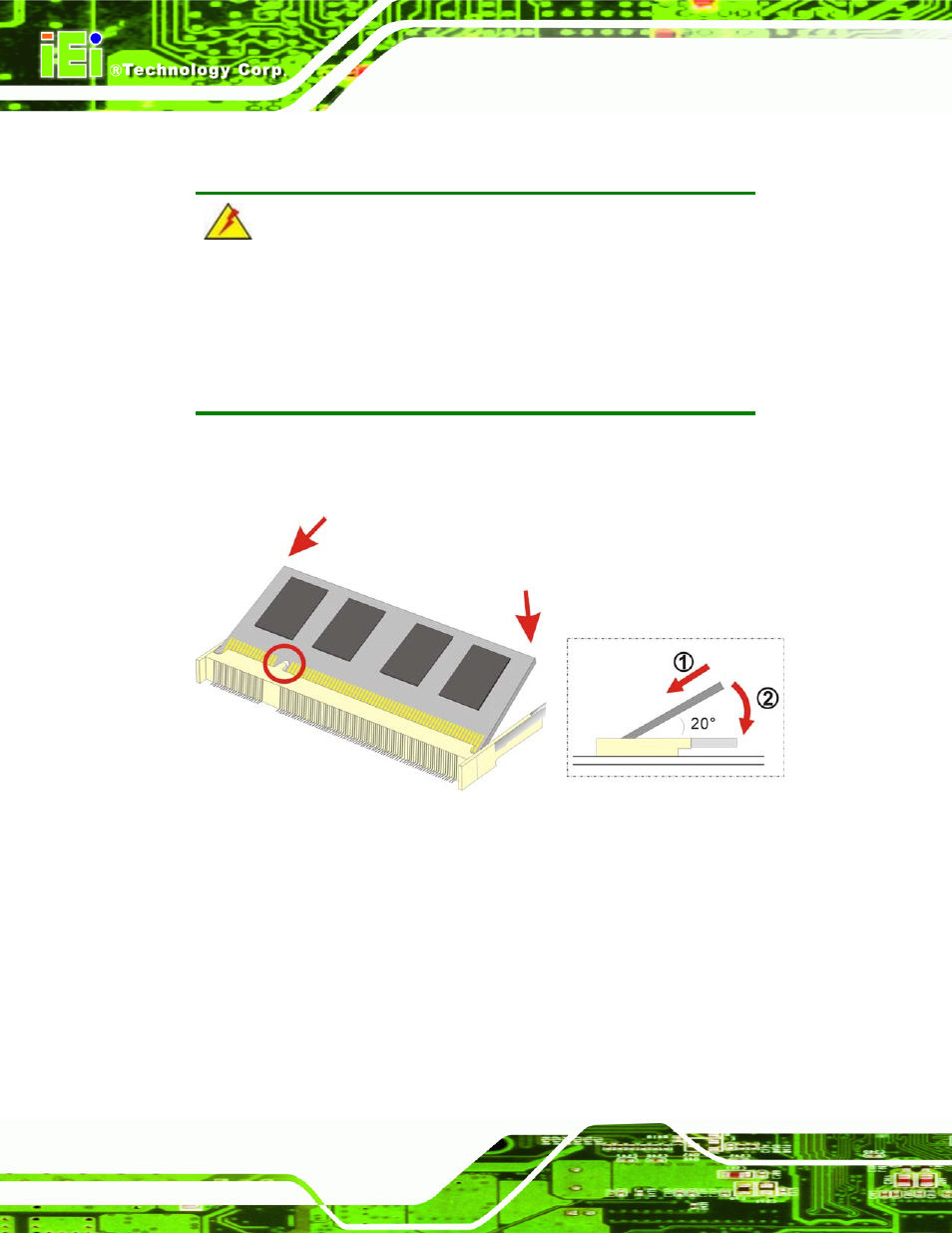

Figure 5-6: SODIMM Installation
Step 1: Locate the SODIMM socket. Place the NANO-9452 on an anti-static pad with
the solder side facing up.
Step 2: Align the SODIMM with the socket. The SODIMM must be oriented in such a
way that the notch in the middle of the SODIMM must be aligned with the plastic
bridge in the socket.
Step 3: Insert the SODIMM. Push the SODIMM chip into the socket at an angle. (See
Figure 5-6)
