NANO-9452 EPIC Motherboard
Page 63
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 USBV3L 5V 2 GND
3 USBP4N 4 USBP5P
5 USBP4P 6 USBP5N
7 GND 8 USBV3L 5V
Table 4-27: USB Port Pinouts
4.3.5 VGA Connector
CN Label: VGA1
CN Type: 15-pin Female
CN Location: See Figure 4-23
CN Pinouts: See Figure 4-27 and Table 4-28
The NANO-9452 has a single 15-pin female connector for connectivity to standard display
devices.

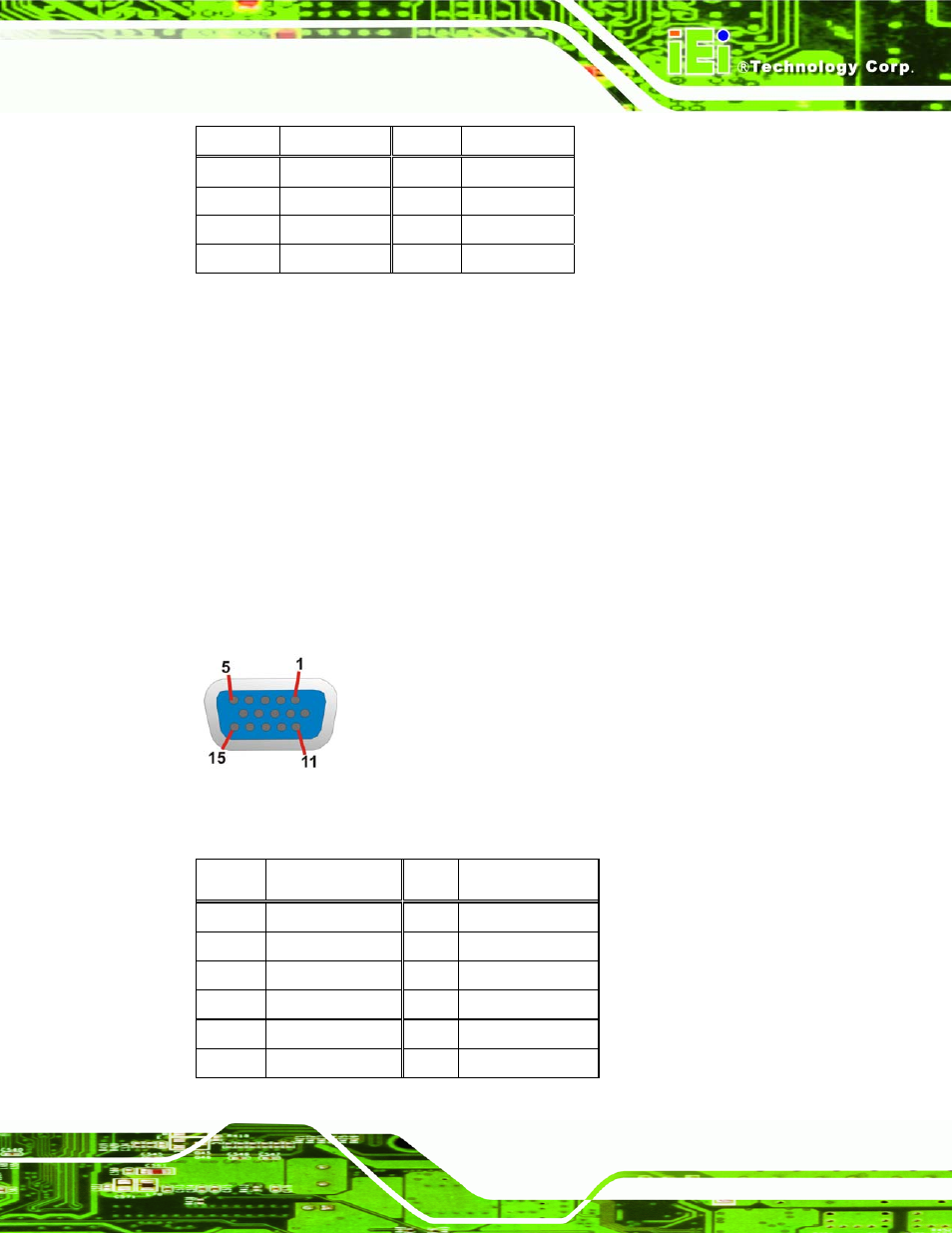

Figure 4-27: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC / NC 10 GND
11 NC 12 DDC DAT
