4.2.14 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin box header

CN Location:

See Figure 4-16

CN Pinouts:

See Table 4-16

The 26-pin parallel port connector connects to a parallel port connector interface or some

other parallel port device such as a printer.

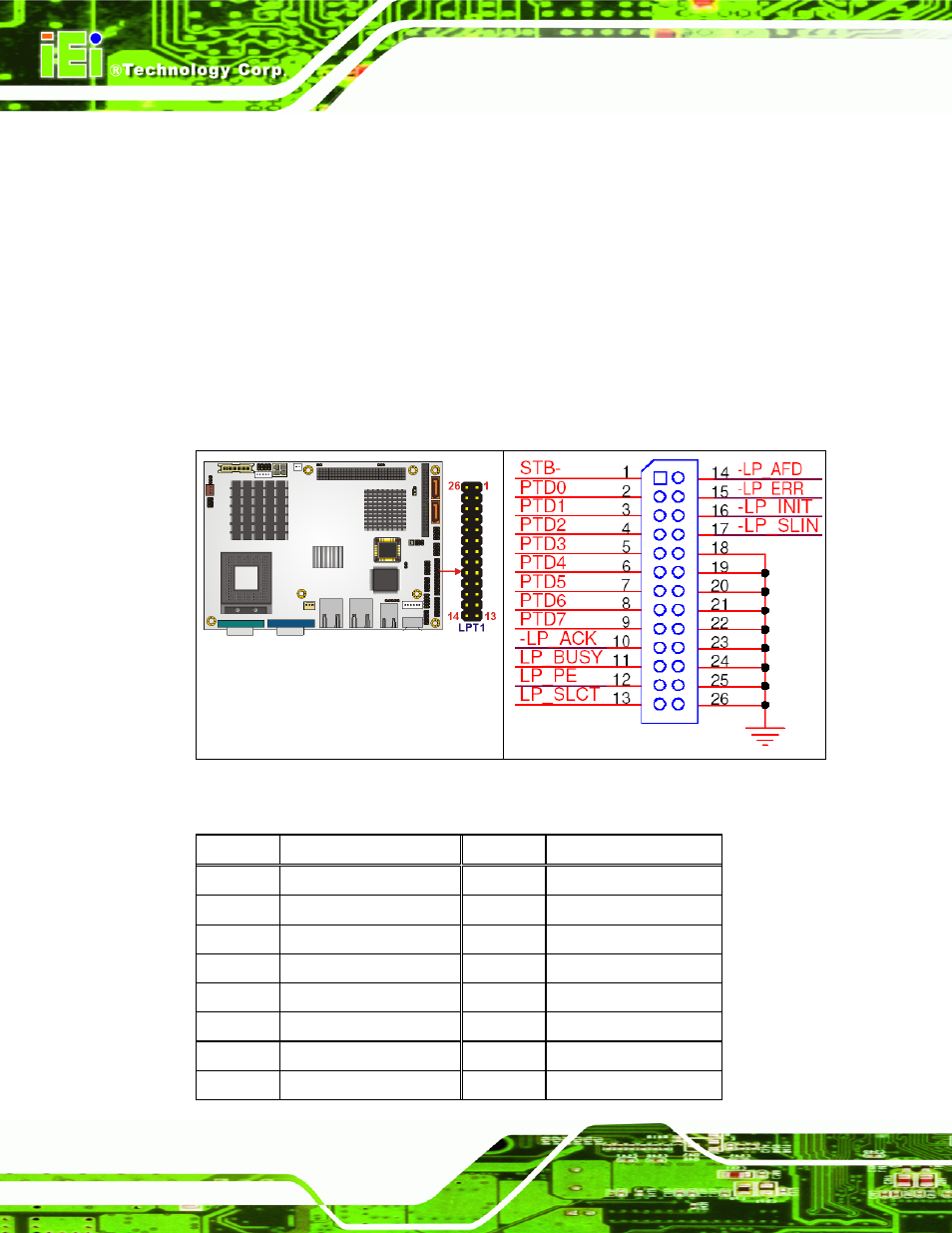

Figure 4-16: Parallel Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 STROBE#

2 DATA

0

3 DATA

1

4 DATA

2

5 DATA

3

6 DATA

4

7 DATA

5

8 DATA

6

9 DATA

7

10

ACKNOWLEDGE

11 BUSY

12 PAPER

EMPTY

13 PRINTER

SELECT 14 AUTO

FORM

FEED

#

15 ERROR#

16 INITIALIZE
