NANO-9452 EPIC Motherboard
Page 93
back of the SATA drive. See Figure 5-19.
Step 0:

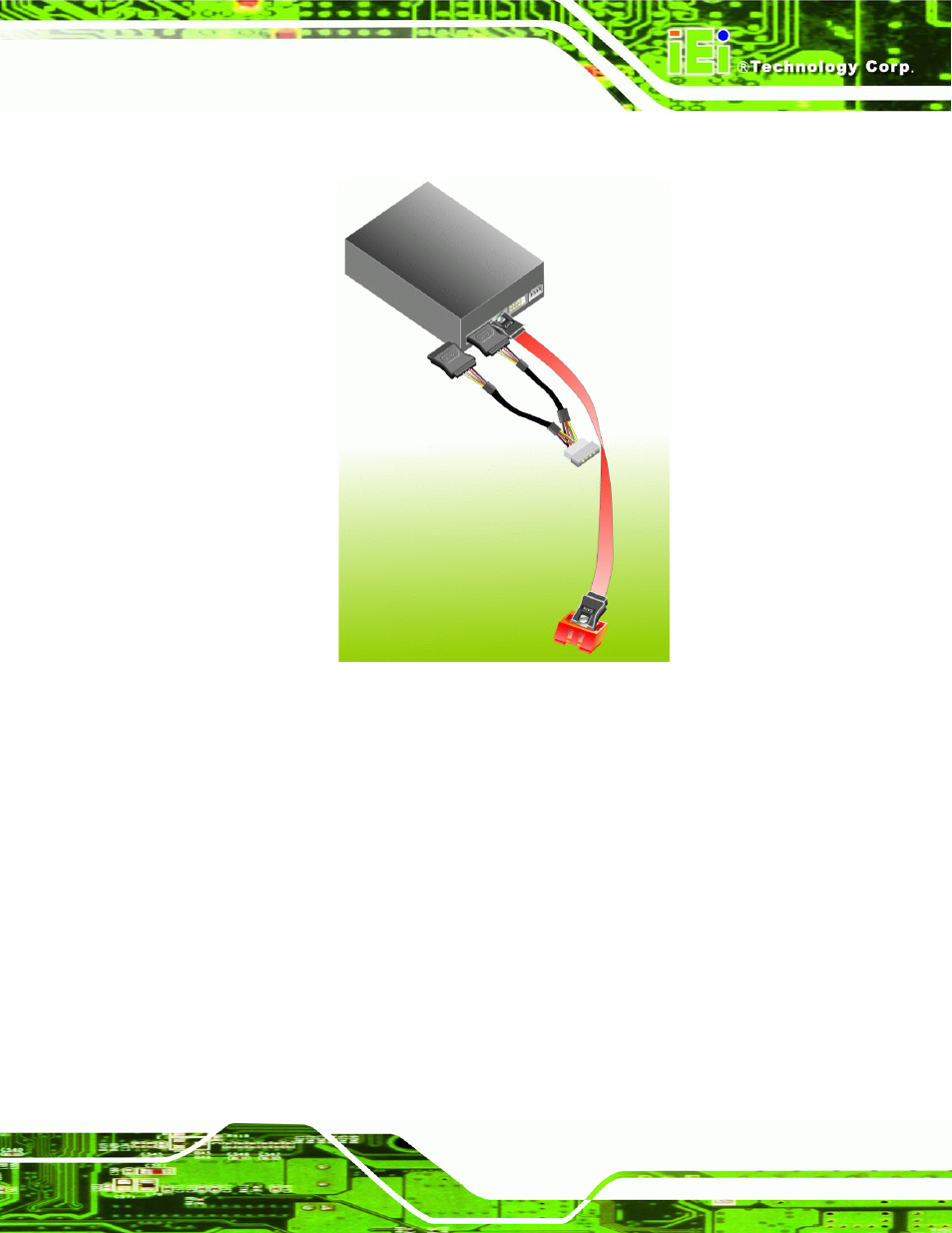

Figure 5-19: SATA Power Drive Connection
5.7 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
Serial port devices
VGA monitors
Parallel port devices
RJ-45 Ethernet cable connectors
Mouse and keyboard
