NANO-9452 EPIC Motherboard

Page 30

4.1 Peripheral Interface Connectors

Section 4.1.2 shows peripheral interface connector locations. Section 4.1.2 lists all the

peripheral interface connectors seen in Section 4.1.2.

4.1.1 NANO-9452 Layout

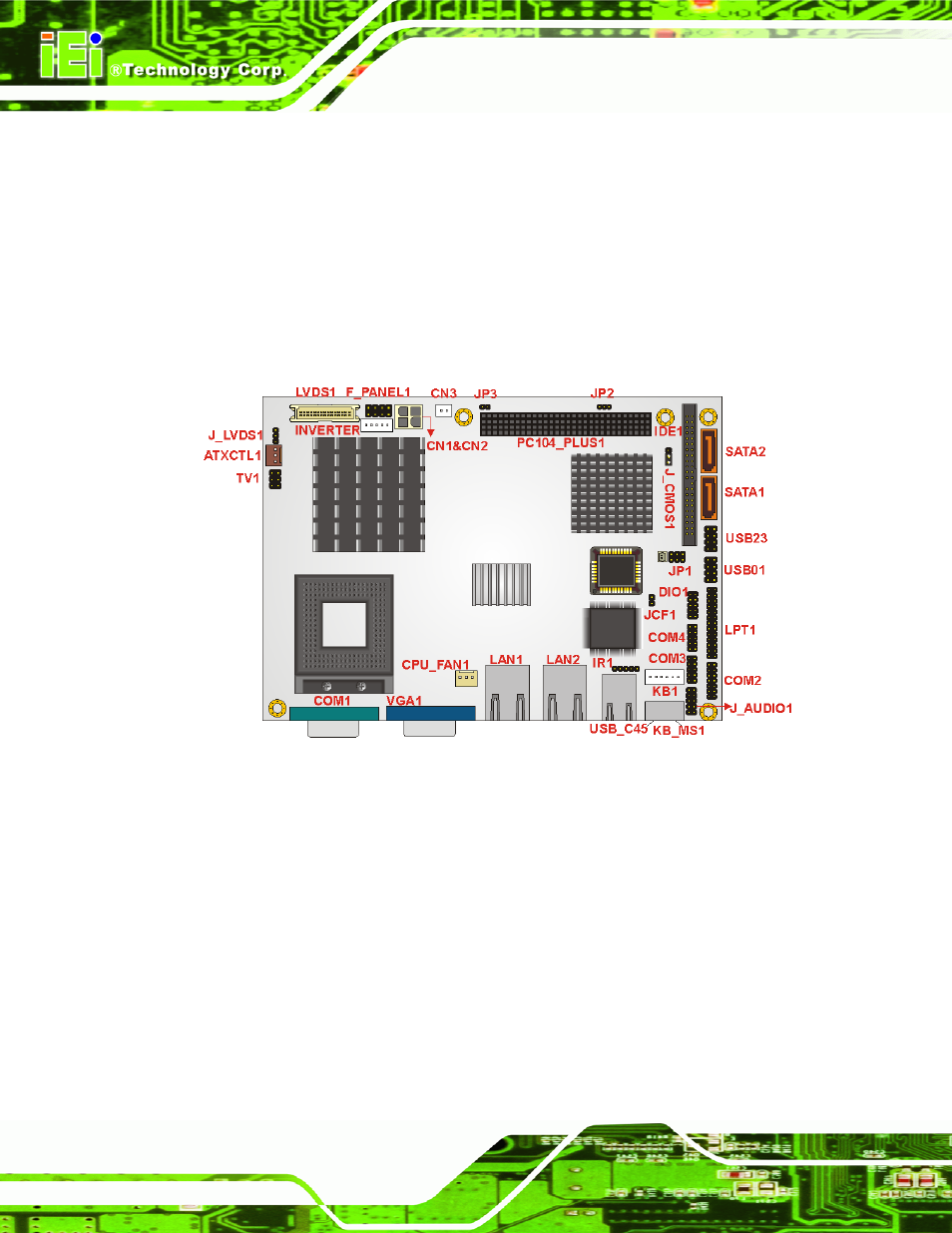

Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

Figure 4-1: Connector and Jumper Locations
