AT Power Select Description
Short 1-2 +3V LVDS Default
Short 2-3 +5V LVDS
Table 5-5: LVDS Voltage Selection Jumper Settings
The LVDS Voltage Selection jumper location. is shown in Figure 5-12.

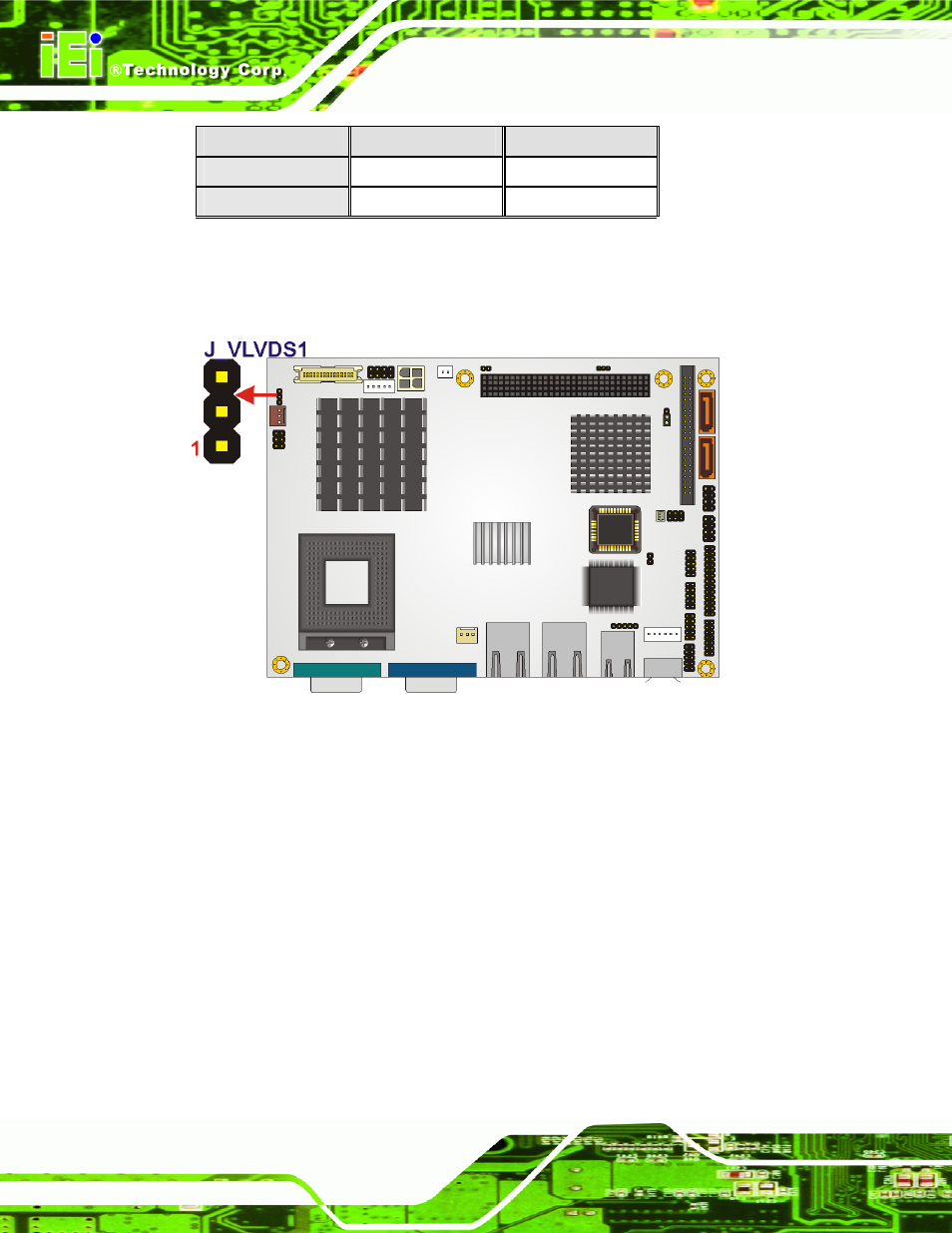

Figure 5-12: LVDS Voltage Selection Jumper Pinout Locations
5.4.5 PCI-104 VIO Selector Jumper
Jumper Label: JP2
Jumper Type: 3-pin header
Jumper Settings: See Table 5-6
Jumper Location: See Figure 5-13
The PCI-104 VIO Selector jumper allows the PCI-104 voltage to be set. The PCI-104 VIO
Selector jumper settings are shown in Table 5-5.
