NANO-LX EPIC SBC

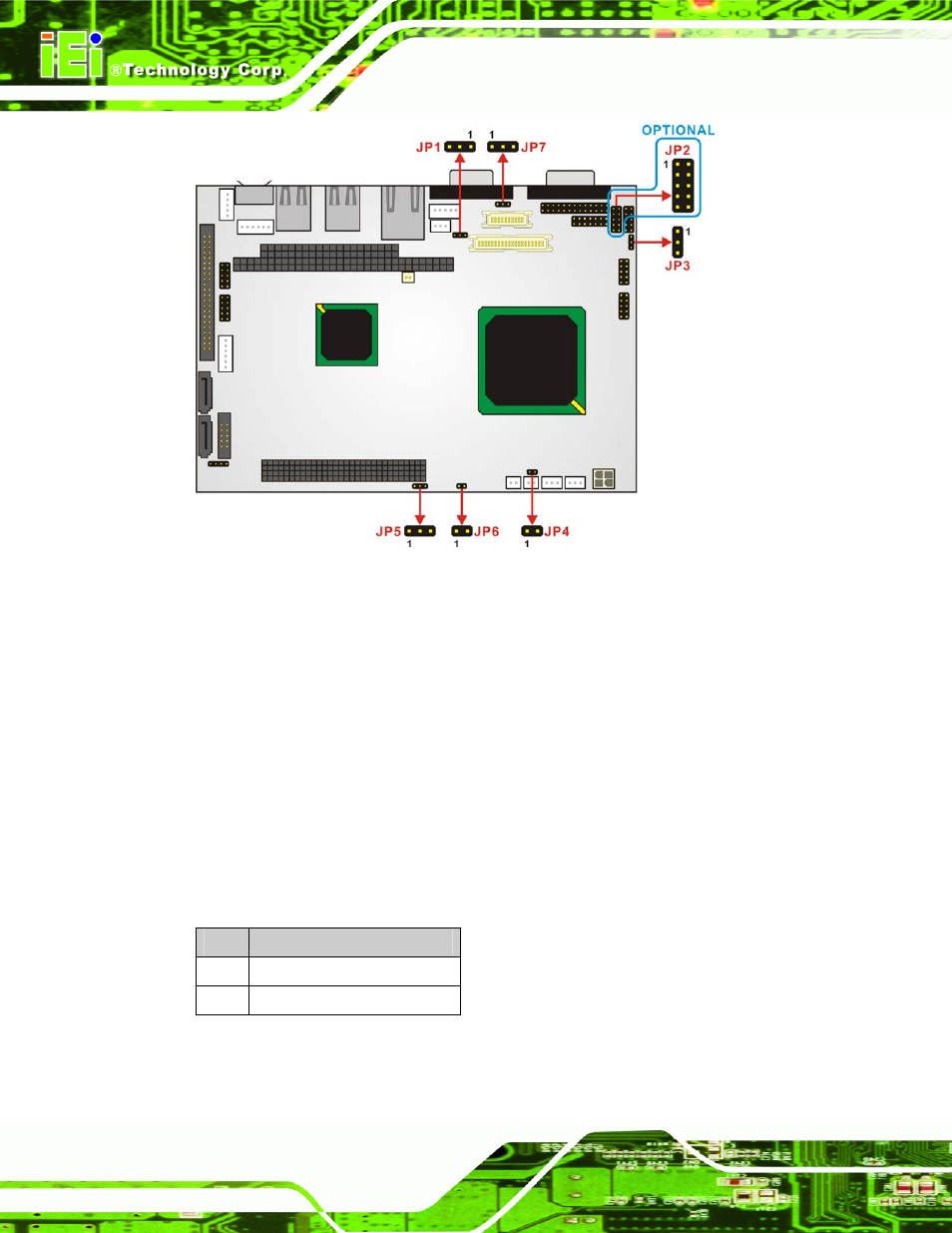

Figure 5-4: Jumper Locations

5.6.1 LCD Panel Shift Clock Jumper

Jumper Label:

JP1

Jumper Type:

3-pin header

Jumper Settings:

See Table 5-2

Jumper Location:

See Figure 5-4

The JP1 jumper sets the LCD panel shift clock.

JP1

Description

1-2

Normal Output (Default)

2-3 Invert

Output

Table 5-2: JP1 Jumper Settings

Page 96
